PL/SQL Basics

Benefits of PL/SQL

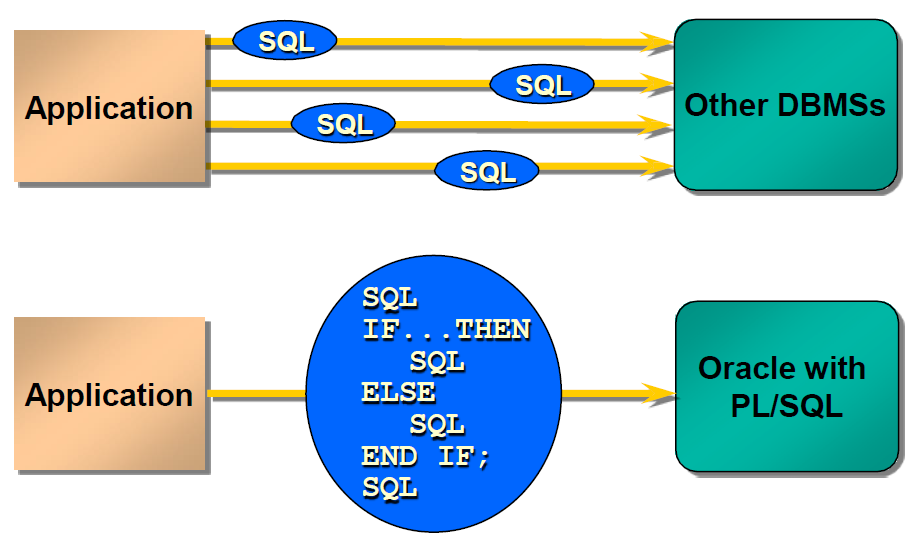

Improved Performance

alt text

Parts of a PL/SQL block: declaration, executable, exception handling

set serveroutput on  -- required if we want to see the output
DECLARE
  v NUMBER := 0;
BEGIN
  DBMS_OUTPUT.PUT_LINE('It''s ok ...');  -- notice the double quotes
  v := 1/v;
  DBMS_OUTPUT.PUT_LINE('It is not ...');
EXCEPTION
  WHEN ZERO_DIVIDE THEN
    DBMS_OUTPUT.PUT_LINE('Division by zero');
END;
/        -- !!! Always end PL/SQL blocks with a '/' character !!!

Results:
---------
It's ok ...
Division by zero

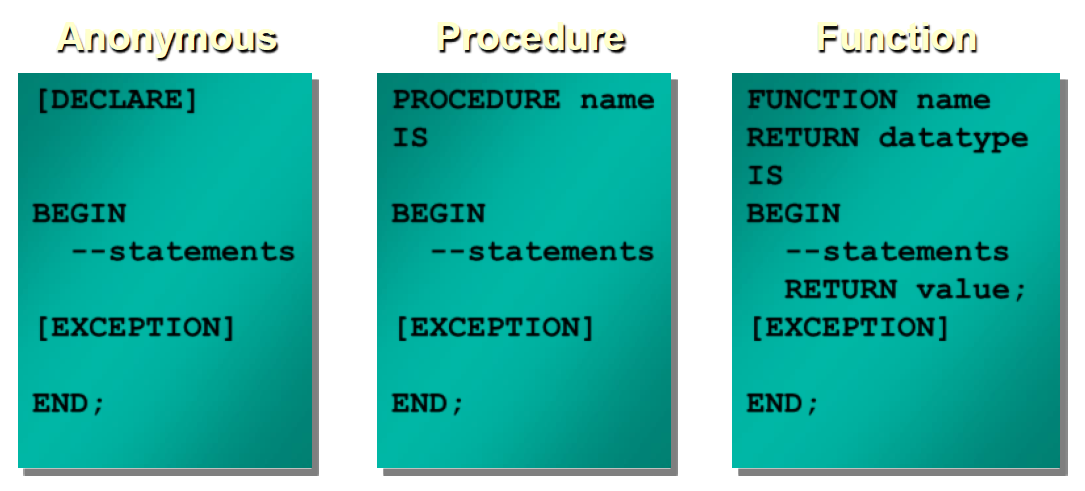

Block Types

alt text

Lexical elements of the PL/SQL language:

Delimiters, identifiers, literals, comments

Examples for delimiters:

'+' Addition operator
':=' Assignment operator
'<<' Label delimiter (begin)
'>>' Label delimiter (end)
'!=' Relational operator (not equal)

Identifiers can denote the following PL/SQL objects:

Constants, Cursors, Exceptions, Keywords, Labels, Packages Reserved words, Subprograms, Variables, Types
Predefined identifiers in STANDARD package, e.g. ZERO_DIVIDE exception

Literals (numeric, character, string, logical, date)

integer: 12
real: 12.0
char: 'a'
string: 'abc', '' (null string, actually NULL)
logical: TRUE, FALSE, NULL
date: DATE '2011-12-25'

Comments: single line and multiline

-- single line comment

/ multiline comment /

Variables

PL/SQL variables:
- Scalar
- Composite
- Reference
- LOB (large objects)
Non-PL/SQL variables: Bind and host variables

-- we cannot put a space into delimiters ( := )
BEGIN
  count := count + 1;   -- correct
  count : = count + 1;  -- incorrect
END;
/

-- DATETIME and INTERVAL literals
DECLARE
  d1 DATE      := DATE '1998-12-25';
  t1 TIMESTAMP := TIMESTAMP '1997-10-22 13:01:01';
  t2 TIMESTAMP WITH TIME ZONE :=   TIMESTAMP '1997-01-31 09:26:56.66 +02:00';

  -- Three years and two months
  -- For greater precision, use the day-to-second interval
  i1 INTERVAL YEAR TO MONTH := INTERVAL '3-2' YEAR TO MONTH;

  -- Five days, four hours, three minutes, two and 1/100 seconds
   i2 INTERVAL DAY TO SECOND := INTERVAL '5 04:03:02.01' DAY TO SECOND;
BEGIN
  NULL;
END;
/

Variable Initialization and Keywords

Using:

Assignment operator (:=)
DEFAULT keyword
NOT NULL constraint

Base Scalar Datatypes

VARCHAR2 (maximum_length)
NUMBER [(precision, scale)]
DATE
CHAR [(maximum_length)]
LONG
LONG RAW
BOOLEAN
BINARY_INTEGER
PLS_INTEGER

-- variable declarations
DECLARE
  part_number       NUMBER(6);     -- SQL data type
  part_name         VARCHAR2(20);  -- SQL data type
  in_stock          BOOLEAN;       -- PL/SQL-only data type
  part_price        NUMBER(6,2);   -- SQL data type
  part_description  VARCHAR2(50);  -- SQL data type
BEGIN
  NULL;
END;
/

-- Constant declarations
DECLARE
  credit_limit     CONSTANT REAL    := 5000.00;  -- SQL data type
  max_days_in_year CONSTANT INTEGER := 366;      -- SQL data type
  urban_legend     CONSTANT BOOLEAN := FALSE;     -- PL/SQL-only data type;
BEGIN
  NULL;
END;
/

Declaring Boolean Variables

Only the values TRUE, FALSE, and NULL can be assigned to a Boolean variable.

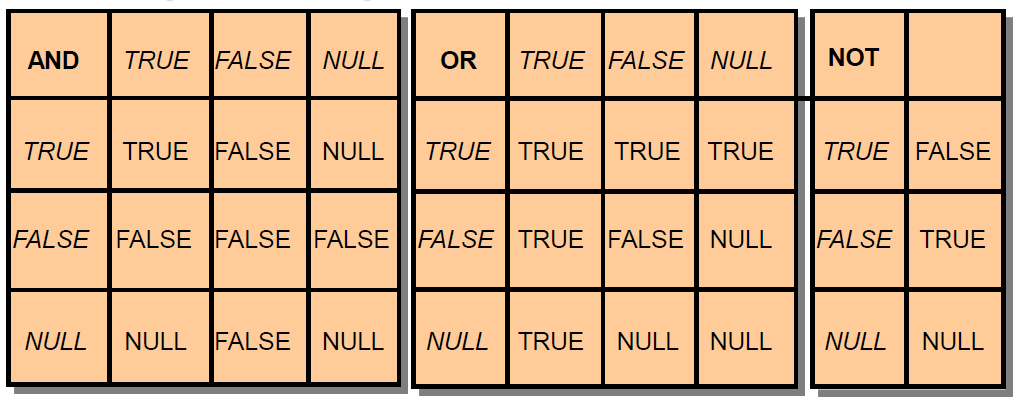

The variables are connected by the logical operators AND, OR, and NOT.
The variables always yield TRUE, FALSE, or NULL.
Arithmetic, character, and date expressions can be used to return a Boolean value.

Composite Datatypes

PL/SQL TABLES
PL/SQL RECORDS

-- Initialization
DECLARE
  hours_worked    INTEGER := 40;
  employee_count  INTEGER := 0;
  pi     CONSTANT REAL := 3.14159;
  radius          REAL := 1;
  area            REAL := (pi * radius**2);
BEGIN
  NULL;
END;
/

-- Default initializations
DECLARE
  counter INTEGER;  -- initial value is NULL by default
BEGIN
  counter := counter + 1;  -- NULL + 1 is still NULL
  IF counter IS NULL THEN
    DBMS_OUTPUT.PUT_LINE('counter is NULL.');
  END IF;
END;
/

Results:
---------
counter is NULL.

-- All variables will be NULL
DECLARE
  null_string  VARCHAR2(80) := TO_CHAR('');
  address      VARCHAR2(80);
  zip_code     VARCHAR2(80) := SUBSTR(address, 25, 0);
  name         VARCHAR2(80);
  valid        BOOLEAN      := (name != '');
BEGIN
  NULL;
END;
/

-- %TYPE type inheritance from a column or from other variable
-- in case of column it doesn't inherit constraint, only data type
DECLARE
  v_name  emp.ename%TYPE;
BEGIN
  DBMS_OUTPUT.PUT_LINE('name=' || v_name);
END;
/

Declare a variable according to:
- A database column definition
- Another previously declared variable
Prefix %TYPE with:
- The database table and column
- The previously declared variable name

DECLARE
  name     VARCHAR(25) NOT NULL := 'Smith';
  surname  name%TYPE := 'Jones';               -- inherits NOT NULL constraint too
BEGIN
  DBMS_OUTPUT.PUT_LINE('name=' || name);
  DBMS_OUTPUT.PUT_LINE('surname=' || surname);
END;
/

Results:
---------
name=Smith
surname=Jones

-- %ROWTYPE record type inheritance (from table, view, cursor, record)
CREATE TABLE employees_temp (
  empid NUMBER(6) NOT NULL PRIMARY KEY,
  deptid NUMBER(6) CONSTRAINT c_employees_temp_deptid CHECK (deptid BETWEEN 100 AND 200),
  deptname VARCHAR2(30) DEFAULT 'Sales' );

DECLARE
  emprec  employees_temp%ROWTYPE;
BEGIN
  emprec.empid := NULL;         -- NOT Null constraint not inherited
  emprec.deptid := 50;          -- Check constraint not inherited
  DBMS_OUTPUT.PUT_LINE ('emprec.deptname: ' || emprec.deptname);  -- Initial value not inherited
END;
/

-- Error if identical names within a PL/SQL unit
DECLARE
  id  BOOLEAN;
  id  VARCHAR2(5);  -- duplicate identifier
BEGIN
  id := FALSE;
END;
/

PL/SQL units are the following:

PL/SQL anonymous block
FUNCTION
LIBRARY
PACKAGE
PACKAGE BODY
PROCEDURE
TRIGGER
TYPE
TYPE BODY

-- qualified names (within the procedure it refers to local identifier)
-- 'echo' -> name of a label and a procedure
SET SERVEROUTPUT ON
<<echo>>    -- name of a label (we can use labels to qualify PL/SQL program blocks)
DECLARE
  x  NUMBER := 5;

  PROCEDURE echo IS   -- name of a procedure
    x  NUMBER := 0;
  BEGIN
    DBMS_OUTPUT.PUT_LINE('x = ' || x);             -- output: x = 0
    DBMS_OUTPUT.PUT_LINE('echo.x = ' || echo.x);   -- output: echo.x = 0 (variable of the procedure)
  END;

BEGIN
  echo;
END;
/

Results:
---------
x = 0
echo.x = 0

-- initialization of a logical variable
DECLARE
  done    BOOLEAN;               -- Initial value is NULL by default
  counter NUMBER := 0;
BEGIN
  done := FALSE;                 -- Assign literal value
  WHILE done != TRUE             -- Compare to literal value
  LOOP
    counter := counter + 1;
    done := (counter > 500);     -- Assign value of BOOLEAN expression
  END LOOP;
  DBMS_OUTPUT.PUT_LINE(counter);  -- output: 501
END;
/

Results:
---------
501

Operators in PL/SQL

Examples:

Increment the index for a loop.
- v_count := v_count + 1;
Set the value of a Boolean flag.
- v_equal := (v_n1 = v_n2);
Validate an employee number if it contains a value.
- v_valid := (v_empno IS NOT NULL);

-- SELECT data from a table into a variable
set serveroutput on
DECLARE
  bonus   NUMBER(7,2);
BEGIN
  SELECT sal * 0.10 INTO bonus
  FROM emp                        -- you need table EMP !!!
  WHERE empno = 7900;
  DBMS_OUTPUT.PUT_LINE('bonus = ' || TO_CHAR(bonus));
END;
/

Results:
---------
bonus = 95

Datatype Conversion

Convert data to comparable datatypes.
Mixed datatypes can result in an error and affect performance.
Conversion functions:
TO_CHAR
TO_DATE
TO_NUMBER

Example:

DECLARE
    v_date VARCHAR2(15);
BEGIN
    SELECT TO_CHAR(hiredate, 'MON. DD, YYYY')
    INTO v_date
    FROM emp
    WHERE empno = 7839;
END;

-- Two NULLs are not equal. Neither != is TRUE for them.
set serveroutput on
DECLARE
  a NUMBER := NULL;
  b NUMBER := NULL;
BEGIN
  IF a = b THEN                         -- yields NULL, not TRUE
    DBMS_OUTPUT.PUT_LINE('a = b');      -- not run
  ELSIF a != b THEN                     -- yields NULL, not TRUE
    DBMS_OUTPUT.PUT_LINE('a != b');     -- not run
  ELSE
    DBMS_OUTPUT.PUT_LINE('Can''t tell if two NULLs are equal');
  END IF;
END;
/

Results:
---------
Can't tell if two NULLs are equal

-- Concatenation operator ignores NULL.
set serveroutput on
BEGIN
  DBMS_OUTPUT.PUT_LINE ('apple' || NULL || NULL || 'sauce');  -- output: applesauce
END;
/

Results:
---------
applesauce

-- use brackets
DECLARE
  a INTEGER := 2**2*3**2;
  b INTEGER := (2**2)*(3**2);
BEGIN
  DBMS_OUTPUT.PUT_LINE('a = ' || TO_CHAR(a));   -- output: a = 36
  DBMS_OUTPUT.PUT_LINE('b = ' || TO_CHAR(b));   -- output: b = 36
END;
/

Results:
---------
a = 36
b = 36

-- lazy evaluation
DECLARE
  on_hand  INTEGER := 0;
  on_order INTEGER := 100;
BEGIN
  IF (on_hand = 0) OR ((on_order / on_hand) < 5) THEN   -- Will not cause ZERO_DIVIDE exception
    DBMS_OUTPUT.PUT_LINE('On hand quantity is zero.');
  END IF;
END;
/

Results:
---------
On hand quantity is zero.

Subtypes

Unconstrained (gives only an alias for compatibility purpose)

SUBTYPE CHARACTER IS CHAR;

Contrained (a real subset)

SUBTYPE INTEGER IS NUMBER(38,0);

Predefined subtypes in STANDARD package, you can see them with the following query:

SELECT text FROM all_source WHERE type='PACKAGE' and name='STANDARD' ORDER BY line;

Examples from the package:

type BOOLEAN is (FALSE, TRUE);
subtype INTEGER is NUMBER(38,0);
subtype DECIMAL is NUMBER(38,0);
subtype BINARY_INTEGER is INTEGER range '-2147483647'..2147483647;
subtype NATURAL is BINARY_INTEGER range 0..2147483647;
subtype NATURALN is NATURAL not null;
type sys_refcursor is ref cursor;

-- user-defined subtypes (record, table, type inheritance + constraint)
DECLARE
  SUBTYPE BirthDate IS DATE NOT NULL;         -- Based on DATE type
  SUBTYPE Counter IS NATURAL;                 -- Based on NATURAL subtype

  SUBTYPE pinteger IS PLS_INTEGER RANGE -9..9;

  TYPE NameList IS TABLE OF VARCHAR2(10);
  SUBTYPE DutyRoster IS NameList;             -- Based on TABLE type

  TYPE TimeRec IS RECORD (minutes INTEGER, hours INTEGER);
  SUBTYPE FinishTime IS TimeRec;                -- Based on RECORD type
  SUBTYPE ID_Num IS employees.employee_id%TYPE; -- Based on column type
BEGIN
  NULL;
END;
/

-- implicit conversion CHAR -> NUMBER
set serveroutput on
DECLARE
  V1  CHAR(10):='1234';
  V2  NUMBER;
BEGIN
  V2 := V1 + 1;                          -- CHAR -> NUMBER
  DBMS_OUTPUT.PUT_LINE ('V2: ' || TO_CHAR(V2));
END;
/

Results:
---------
V2: 1235

-- Take care of blank-padded semantics in case of CHAR data type !!!
set serveroutput on
DECLARE
  last_name1 CHAR(5)  := 'BELLO';     -- no trailing blanks
  last_name2 CHAR(10) := 'BELLO   ';  -- trailing blanks
BEGIN
  IF last_name1 = last_name2 THEN
    DBMS_OUTPUT.PUT_LINE(last_name1 || '(length:'|| length(last_name1)||') equals ' ||
    last_name2  || '(length:'|| length(last_name2)||')');
  ELSE
    DBMS_OUTPUT.PUT_LINE(last_name2 || ' does not equal ' || last_name1);
  END IF;
END;
/

Results:
---------
BELLO(length:5) equals BELLO     (length:10)

-- Using TIMESTAMP data type
-- TIMESTAMP stores the fractional seconds
DECLARE
  start_time   VARCHAR2(50);
  finish_time  VARCHAR2(50);
  elapsed_time NUMBER(30,10);
BEGIN
  -- Get system time as seconds and fractional seconds past midnight:
  SELECT TO_CHAR(SYSTIMESTAMP,'SSSSS.FF') INTO start_time FROM sys.DUAL;
  -- Get system time again:
  SELECT TO_CHAR(SYSTIMESTAMP,'SSSSS.FF') INTO finish_time FROM sys.DUAL;
  elapsed_time := TO_NUMBER(finish_time, '99999.999999')
                - TO_NUMBER(start_time, '99999.999999');
  DBMS_OUTPUT.PUT_LINE ('Elapsed time: ' || TO_CHAR(elapsed_time,'0.999999'));
END;
/

Results:
---------
Elapsed time:  0.000055

-- simple CASE expression (this is not a statement but an expression!)
set serveroutput on
DECLARE
  grade CHAR(1) := 'B';
  appraisal VARCHAR2(20);
BEGIN
  appraisal :=
    CASE grade
      WHEN 'A' THEN 'Excellent'
      WHEN 'B' THEN 'Very Good'
      WHEN 'C' THEN 'Good'
      WHEN 'D' THEN 'Fair'
      WHEN 'F' THEN 'Poor'
      ELSE 'No such grade'
    END;
    DBMS_OUTPUT.PUT_LINE ('Grade ' || grade || ' is ' || appraisal);  -- Very Good
END;
/

Results:
---------
Grade B is Very Good

-- This form of CASE tests equality so grade = NULL will not be TRUE !!!
-- use the other form, see in the next example below
set serveroutput on
DECLARE
  grade CHAR(1); -- NULL by default
  appraisal VARCHAR2(20);
BEGIN
  appraisal :=
  CASE grade
    WHEN NULL THEN 'No grade assigned'  -- grade = NULL
    WHEN 'A' THEN 'Excellent'
    WHEN 'B' THEN 'Very Good'
    WHEN 'C' THEN 'Good'
    WHEN 'D' THEN 'Fair'
    WHEN 'F' THEN 'Poor'
    ELSE 'No such grade'
  END;
  DBMS_OUTPUT.PUT_LINE ('Grade ' || grade || ' is: ' || appraisal);  -- No such grade
END;
/

Results:
---------
Grade  is: No such grade

-- logical expressions after WHEN
-- First TRUE condition will be returned
set serveroutput on
DECLARE
  grade CHAR(1); -- NULL by default
  appraisal VARCHAR2(20);
BEGIN
  appraisal :=
    CASE
      WHEN grade IS NULL THEN 'No grade assigned'
      WHEN grade = 'A' THEN 'Excellent'
      WHEN grade = 'B' THEN 'Very Good'
      WHEN grade = 'C' THEN 'Good'
      WHEN grade = 'D' THEN 'Fair'
      WHEN grade = 'F' THEN 'Poor'
      ELSE 'No such grade'
    END;
    DBMS_OUTPUT.PUT_LINE ('Grade ' || grade || ' is: ' || appraisal);  -- No grade assigned
END;
/

Logic Tables

Build a simple Boolean condition with a comparison operator.

alt text

Any arithmetic expression containing a null value evaluates to NULL.

Retrieving Data in PL/SQL

Retrieve the order date and the ship date for the specified order.

DECLARE
  v_orderdate ord.orderdate%TYPE;
  v_shipdate ord.shipdate%TYPE;
BEGIN
  SELECT orderdate, shipdate
  INTO v_orderdate, v_shipdate
  FROM ord
  WHERE id = 620;
  ...
END;

Updating Data

Increase the salary of all employees in the emp table who are Analysts.

DECLARE
  v_sal_increase emp.sal%TYPE := 2000;
BEGIN
  UPDATE emp
  SET sal = sal + v_sal_increase
  WHERE job = 'ANALYST';
END;

Control statements

IF THEN

IF condition THEN
  statements
END IF;

IF THEN ELSE

IF condition THEN
  statements
ELSE
  else_statements
END IF;

IF THEN ELSIF

IF condition_1 THEN
  statements_1
ELSIF condition_2 THEN
  statements_2
[ ELSIF condition_3 THEN
    statements_3
]...
[ ELSE
    else_statements
]
END IF;

Simple CASE statement

CASE_NOT_FOUND exception if none of them is true

CASE selector
WHEN selector_value_1 THEN statements_1
WHEN selector_value_2 THEN statements_2
...
WHEN selector_value_n THEN statements_n
[ ELSE   else_statements ]
END CASE;

Searched CASE statement

CASE_NOT_FOUND exception if none of them is true

CASE
WHEN condition_1 THEN statements_1
WHEN condition_2 THEN statements_2
...
WHEN condition_n THEN statements_n
[ ELSE   else_statements ]
END CASE;

Basic LOOP

[ label ] LOOP
  statements
END LOOP [ label ];

Exit from loop / starting a new iteration

EXIT
EXIT WHEN
CONTINUE
CONTINUE WHEN

WHILE LOOP

[ label ] WHILE condition LOOP
  statements
END LOOP [ label ];

FOR LOOP

[ label ] FOR index IN [ REVERSE ] lower_bound..upper_bound LOOP
  statements
END LOOP [ label ];

BEGIN
 FOR i IN REVERSE 1..3 loop
  dbms_output.put_line(to_char(i));
 END loop;
END;
/

-- NULL statement
NULL;

-- GOTO statement
GOTO label

-- RETURN statement (return from a subprogram or from an anonymous block)

BEGIN
 FOR i IN 1..3 loop
  dbms_output.put_line(i);
  IF i=2 THEN RETURN; END IF;
 END loop;
END;
/

-- index of FOR loop is local within the loop
set serveroutput on
<<main>>  -- Label block.
DECLARE
  i NUMBER := 5;
BEGIN
  FOR i IN 1..3 LOOP
    DBMS_OUTPUT.PUT_LINE ('local: ' || TO_CHAR(i) || ', global: ' || TO_CHAR(main.i));
  END LOOP;
END main;
/

Results:
---------
local: 1, global: 5
local: 2, global: 5
local: 3, global: 5

-- Loop indexes in nested loops
/*
- Nest loops to multiple levels.
- Use labels to distinguish between blocks and loops.
- Exit the outer loop with the EXIT statement referencing the label. */
set serveroutput on
BEGIN
  <<outer_loop>>
  FOR i IN 1..3 LOOP
    <<inner_loop>>
    FOR i IN 1..3 LOOP
      IF outer_loop.i = 2 THEN
        DBMS_OUTPUT.PUT_LINE('outer: ' || TO_CHAR(outer_loop.i) || ' inner: ' || TO_CHAR(inner_loop.i));
      END IF;
    END LOOP inner_loop;
  END LOOP outer_loop;
END;
/

Results:
---------
outer: 2 inner: 1
outer: 2 inner: 2
outer: 2 inner: 3

/*************** scope and visibility *************/
<<label1>>
DECLARE
  a  NUMBER;
BEGIN
  a:=2;
  <<label2>>
  DECLARE
    a number;
  BEGIN
    a:=4;
    dbms_output.put_line(label1.a);
    dbms_output.put_line(label2.a);
    dbms_output.put_line(a);
  END;
  dbms_output.put_line(a);
END;
/

Results:
---------
2
4
4
2

/************** outer (bind) variables, it works only in SQL*PLUS environment, not in SqlDeveloper *************/
/* program gets a pointer, so it can modify the variable*/
Variable v number;
BEGIN
 :v := mod(121,3);
END;
/
print v;

Using Bind Variables

To reference a bind variable in PL/SQL, you must prefix its name with a colon (:).

VARIABLE g_salary NUMBER
DECLARE
  v_sal emp.sal%TYPE;
BEGIN
  SELECT sal
  INTO v_sal
  FROM emp
  WHERE empno = 7369;
  :g_salary := v_sal;
END;

/************** printing on the screen *************/
set serveroutput on
BEGIN
  DBMS_OUTPUT.PUT_LINE('Hello World!');
END;
/

Use SET SERVEROUTPUT ON

A PL/SQL program actually doesn't print on the screen.

It prints into a buffer on the server side.

You can use GET_LINE to read from the buffer.

SET SERVEROUTPUT ON
DECLARE
  v_status  INTEGER := 0;
  v_line    VARCHAR2(100);
  v_buff    VARCHAR2(1000);
BEGIN
  -- We print 3 lines into the buffer.
  DBMS_OUTPUT.PUT_LINE('1-bubu'); DBMS_OUTPUT.PUT_LINE('2-bibi'); DBMS_OUTPUT.PUT_LINE('3-baba');
  -- We empty the buffer.
  WHILE v_status = 0 LOOP
    DBMS_OUTPUT.GET_LINE (v_line, v_status);
    v_buff := v_buff || v_line;
  END LOOP;
  -- We print the concatenated string into the buffer.
  DBMS_OUTPUT.PUT_LINE(v_buff);
END;
/

Results:
---------
1-bubu2-bibi3-baba

Runtime environment reads the buffer only after the program terminated.

Without 'set serveroutput on' result remains in buffer.

set serveroutput off     -- notice OFF !!!
BEGIN
  DBMS_OUTPUT.PUT_LINE('first program');
  DBMS_OUTPUT.PUT_LINE('second program');
END;
/

SET SERVEROUTPUT ON
DECLARE
  v_status  INTEGER := 0;
  v_line    VARCHAR2(100);
BEGIN
  WHILE v_status = 0 LOOP
    DBMS_OUTPUT.GET_LINE (v_line, v_status);       -- reads buffer
  END LOOP;
  DBMS_OUTPUT.PUT_LINE('second program');          -- writes into buffer
END;
/

/****************** Input from the user ****************/
/* substitution happens before SQL statement is sent to Oracle Server */

ACCEPT v1 NUMBER FORMAT '99' PROMPT 'Give the department number:'
ACCEPT v2 DATE FORMAT 'yyyy.mm.dd' DEFAULT 1982.01.01 PROMPT 'Date (format: 2013.01.30)'
set serveroutput on
DECLARE
  v_sum NUMBER;
BEGIN
  SELECT sum(sal) INTO v_sum FROM emp WHERE deptno = &v1 AND hiredate < to_date('&v2', 'yyyy.mm.dd');
  dbms_output.put_line(v_sum);
END;
/

/****************** records ****************/
DECLARE
  TYPE rektip IS RECORD(m1 INTEGER, m2 VARCHAR2(10));
  rec rektip;
BEGIN
  rec.m1 := 1; rec.m2 := 'Bubu';
  DBMS_OUTPUT. PUT_LINE(rec.m2);
END;

/****************** records, arrays ****************/
set serveroutput on
DECLARE
  TYPE rek_type IS RECORD(f1 INTEGER DEFAULT 10, f2 dept%ROWTYPE);  -- nested record (ROWTYPE)
  rec rek_type;
  TYPE tab_type IS TABLE OF INTEGER INDEX BY BINARY_INTEGER;   -- associative (index by) array
  TYPE rek_type2 IS RECORD(f1 INTEGER, f2 tab_type);           -- nested array within a field
  rec2 rek_type2;
  rec_oszt dept%ROWTYPE;                                       -- a record too
BEGIN
 rec_oszt.dname := 'SALES';
 dbms_output.put_line(rec.f1);                             -- default value of the field

 SELECT * INTO rec.f2 FROM dept WHERE deptno = 10;         -- rec (nested record)
 dbms_output.put_line(rec.f2.loc);

 rec2.f2(1) := 100; rec2.f2(2) := 200; rec2.f2(3) := 300;  -- rec2 (array within a field)
 FOR i IN rec2.f2.FIRST .. rec2.f2.LAST LOOP
   dbms_output.put_line(rec2.f2(i));
 END LOOP;
END;
/

Results:
---------
10
NEW YORK
100
200
300

PL/SQL Records

Must contain one or more components of any scalar, RECORD, or PL/SQL TABLE datatype, called fields
Are similar in structure to records in a 3GL
Are not the same as rows in a database table
Treat a collection of fields as a logical unit
Are convenient for fetching a row of data from a table for processing

Using PL/SQL Table Methods

The following methods make PL/SQL tables easier to use:

EXISTS
COUNT
FIRST and LAST
PRIOR
NEXT
EXTEND
TRIM
DELETE

PL/SQL Tables

Are composed of two components:
- Primary key of datatype BINARY_INTEGER
- Column of scalar or record datatype
Increase dynamically because they are unconstrained

The %ROWTYPE Attribute

Declare a variable according to a collection of columns in a database table or view.
Prefix %ROWTYPE with the database table.
Fields in the record take their names and datatypes from the columns of the table or view.
