DML and DDL

Data Manipulation Language (DML) in SQL

A DML statement is executed when you:
- Add new rows to a table
- Modify existing rows in a table
- Remove existing rows from a table
A transaction consists of a collection of DML statements that form a logical unit of work.

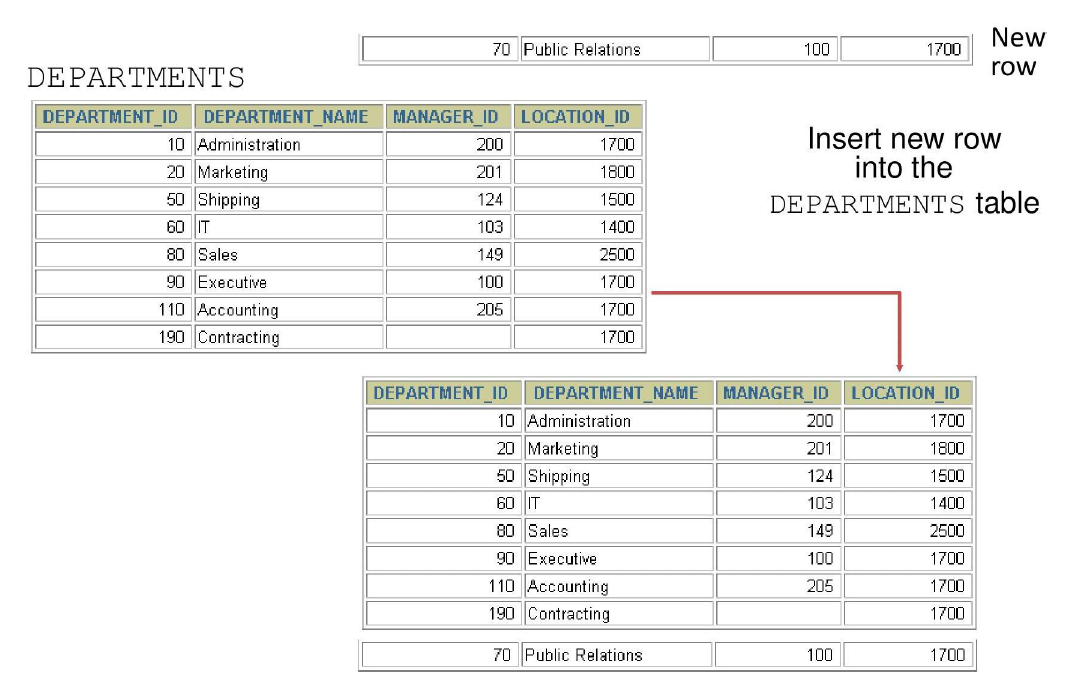

Adding a New Row to a Table

alt text

INSERT Statement Syntax

Add new rows to a table by using the INSERT statement.

INSERT INTO table [(column [, column...])]
VALUES (value [, value...]);

With this syntax, only one row is inserted at a time.

Inserting New Rows

Insert a new row containing values for each column.
List values in the default order of the columns in the table.
Optionally, list the columns explicitly in the INSERT clause.
Enclose character and date values in single quotation marks.

INSERT INTO departments (department_id, department_name, manager_id, location_id)
VALUES (70, 'Public Relations', 100, 1700);

Inserting Rows with NULL Values

Implicit Method

Omit the column from the column list.
The omitted column(s) will receive NULL (or default value if defined).

INSERT INTO departments (department_id, department_name)
VALUES (30, 'Purchasing');

Explicit Method

Specify the NULL keyword in the VALUES clause.

INSERT INTO departments
VALUES (100, 'Finance', NULL, NULL);

Copying Rows from Another Table

Write your INSERT statement with a subquery.
Do not use the VALUES clause.
Match the number of columns in the INSERT clause to those in the subquery.

INSERT INTO target_table [(column1, column2, ...)]
SELECT column1, column2, ...
FROM source_table
[WHERE condition];

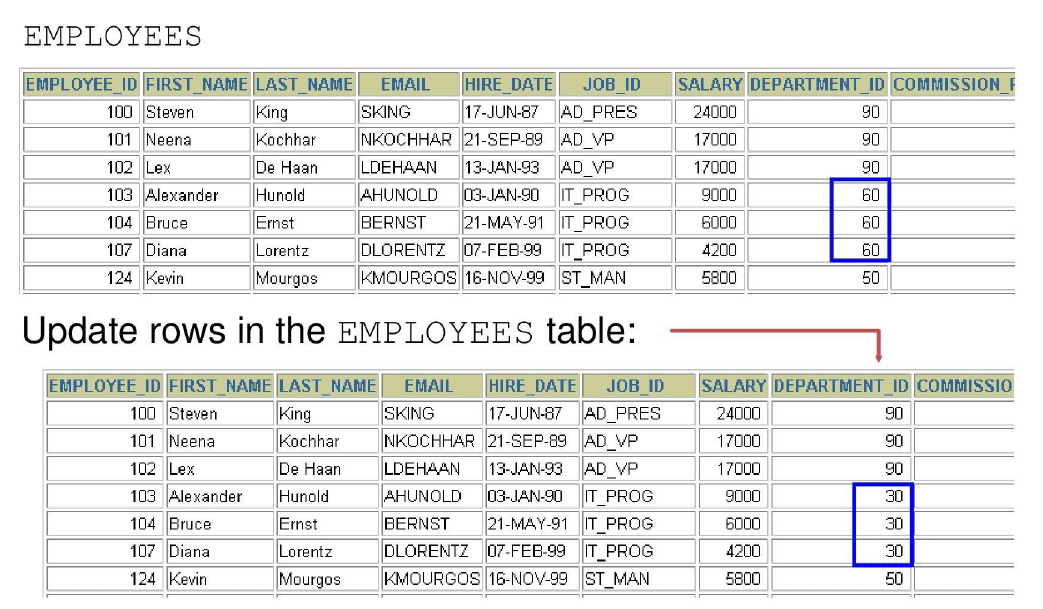

Changing Data in a Table

alt text

UPDATE Statement Syntax in Oracle SQL

Modify existing rows with the UPDATE statement.

UPDATE table
SET column = value [, column = value, ...]
[WHERE condition];

Update more than one row at a time (if required).
Specific row or rows are modified if you specify the WHERE clause.

UPDATE employees
SET department_id = 70
WHERE employee_id = 113;

All rows in the table are modified if you omit the WHERE clause.

UPDATE copy_emp
SET department_id = 110;

Updating Two Columns with a Subquery

Update employee 114's job and salary to match that of employee 205.

UPDATE employees
SET job_id = (SELECT job_id
              FROM employees
              WHERE employee_id = 205),
    salary = (SELECT salary
              FROM employees
              WHERE employee_id = 205)
WHERE employee_id = 114;

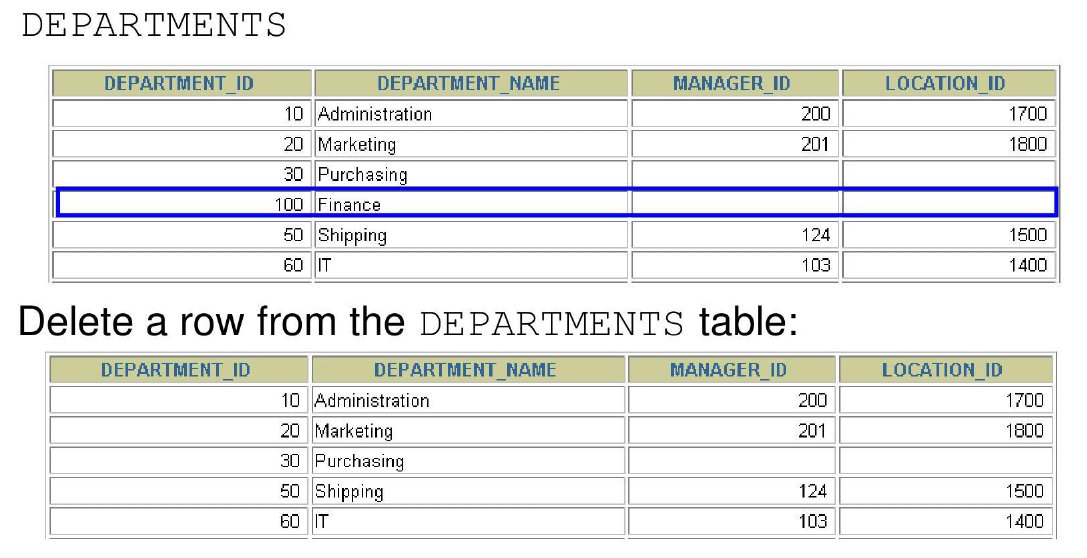

Removing a Row from a Table

alt text

DELETE Statement in Oracle SQL

You can remove existing rows from a table by using the DELETE statement.

DELETE [FROM] table
[WHERE condition];

Specific rows are deleted if you specify the WHERE clause.

DELETE FROM departments
WHERE department_name = 'Finance';

All rows in the table are deleted if you omit the WHERE clause.

DELETE FROM copy_emp;

Deleting Rows Based on Another Table

Use subqueries in DELETE statements to remove rows from a table based on values from another table.

DELETE FROM employees
WHERE department_id =
    (SELECT department_id
     FROM departments
     WHERE department_name LIKE '%Public%');

TRUNCATE Statement in Oracle SQL

Removes all rows from a table, leaving the table empty and the table structure intact.
Is a data definition language (DDL) statement rather than a DML statement.
Cannot easily be undone (implicit commit — no ROLLBACK possible).

TRUNCATE TABLE table_name;

Example:

TRUNCATE TABLE copy_emp;

Using a Subquery in an INSERT Statement

INSERT INTO
    (SELECT employee_id, last_name, email, hire_date, job_id, salary, department_id
     FROM employees
     WHERE department_id = 50)
VALUES (99999, 'Taylor', 'DTAYLOR',
       TO_DATE('07-Jun-99', 'DD-MON-RR'),
       'ST_CLERK', 5000, 50);

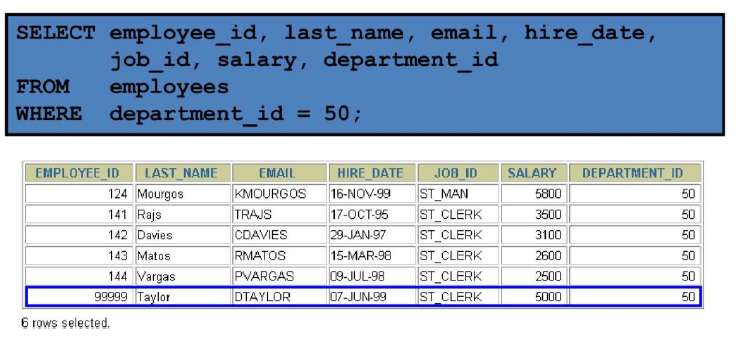

Verify the results:

alt text

Database Transactions

A database transaction consists of one of the following:
- DML statements that constitute one consistent change to the data
- One DDL statement
- One data control language (DCL) statement

Database Transactions

Begins when the first DML SQL statement is executed.
A transaction ends with one of the following events:
- A COMMIT or ROLLBACK statement is issued.
- A DDL or DCL statement executes (automatic commit).
- The user exits SQL*Developer (or tool) normally (implicit commit in many tools).
- The system crashes (changes lost — rollback on restart).

Advantages of COMMIT and ROLLBACK Statements

With COMMIT and ROLLBACK statements, you can:

- **Ensure data consistency**
All changes in a transaction succeed together or are undone completely (atomicity).

- **Preview data changes before making changes permanent**
Execute DML statements, query the results, and decide whether to commit or rollback.

- **Group logically related operations**
Treat multiple DML statements as a single logical unit of work.

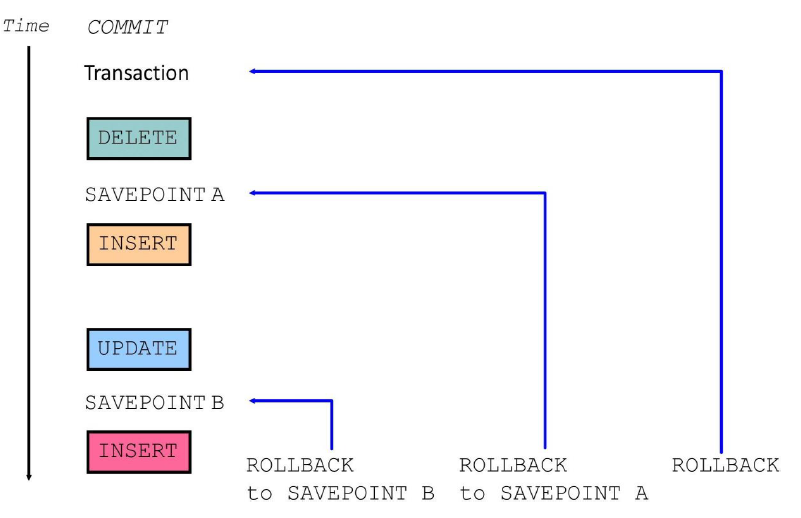

Controlling Transactions

alt text

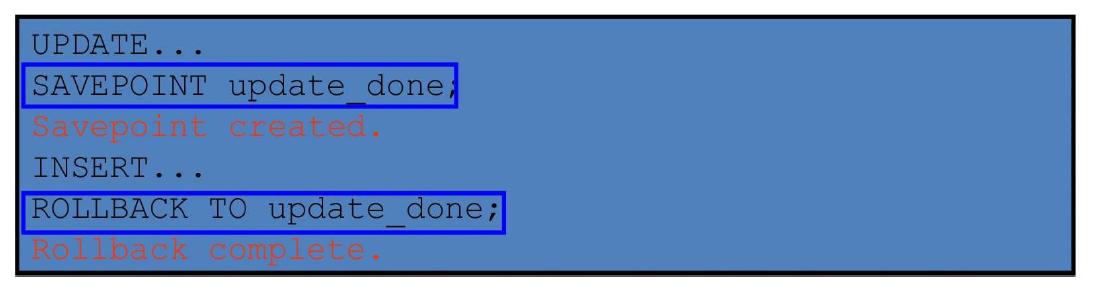

Rolling Back Changes to a Marker

Create a marker in a current transaction by using the SAVEPOINT statement.
Roll back to that marker by using the ROLLBACK TO SAVEPOINT statement.

alt text

Implicit Transaction Processing

An automatic commit occurs under the following circumstances:
- DDL statement is issued
- DCL statement is issued
- Normal exit from SQL Developer, without explicitly issuing COMMIT or ROLLBACK statements
An automatic rollback occurs under an abnormal termination of SQL Developer or a system failure.

State of the Data Before COMMIT or ROLLBACK

The previous state of the data can be recovered.
The current user can review the results of the DML operations by using the SELECT statement.
Other users cannot view the results of the DML statements by the current user.
The affected rows are locked; other users cannot change the data in the affected rows.

State of the Data After COMMIT

After issuing a COMMIT:

Data changes are made permanent in the database.
The previous state of the data is permanently lost.
All users can view the results.
Locks on the affected rows are released; those rows are available for other users to manipulate.
All savepoints are erased.

Committing Data

Step 1: Make the Changes

DELETE FROM employees
WHERE employee_id = 99999;

INSERT INTO departments
VALUES (290, 'Corporate Tax', NULL, 1700);

Step 2: Commit the Changes

COMMIT;

State of the Data After ROLLBACK

Discard all pending changes by using the ROLLBACK statement:
- Data changes are undone.
- Previous state of the data is restored.
- Locks on the affected rows are released.

DELETE FROM copy_emp;
-- 22 rows deleted.

ROLLBACK;
-- Rollback complete.

State of the Data After ROLLBACK

DELETE FROM test;               -- ups!, it's a mistake
-- 25,000 rows deleted.

ROLLBACK;                       -- correct the mistake
-- Rollback complete.

DELETE FROM test WHERE id = 100;  -- it's ok
-- 1 row deleted.

SELECT * FROM test WHERE id = 100;
-- No rows selected.  (row successfully removed)

COMMIT;                           -- make it permanent
-- Commit complete.

Statement-Level Rollback

If a single DML statement fails during execution, only that statement is rolled back.
The Oracle server implements an implicit savepoint.
All other changes (previous successful statements in the transaction) are retained.
The user should terminate transactions explicitly by executing a COMMIT or ROLLBACK statement.

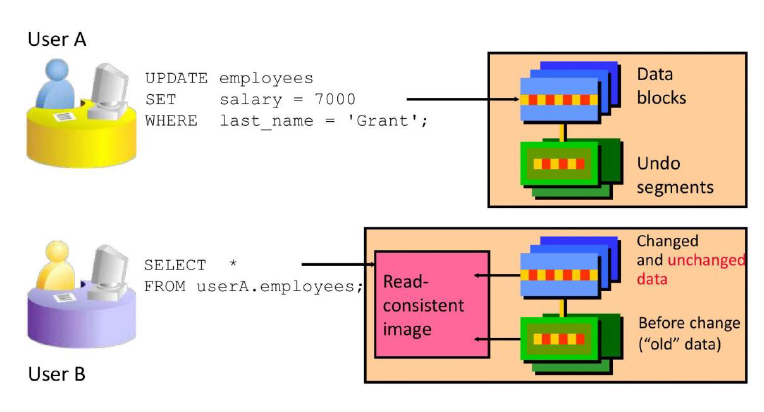

Read Consistency

Read consistency guarantees a consistent view of the data at all times.
Changes made by one user do not conflict with changes made by another user.
Read consistency ensures that on the same data:
- Readers do not wait for writers
- Writers do not wait for readers

alt text

Database Objects

Object	Description
Table	Basic unit of storage; composed of rows and columns
View	Logically represents subsets of data from one or more tables
Sequence	Generates numeric values (e.g., for auto-incrementing IDs)
Index	Improves the performance of some queries
Synonym	Gives alternative names to objects

Naming Rules for Database Objects

Must begin with a letter (A–Z or a–z).
Must be 1–30 characters long (Oracle 12.2 and later: up to 128 bytes for most objects).
Must contain only:
- Alphanumeric characters (A–Z, a–z, 0–9)
- Underscore (_)
- Dollar sign ($)
- Pound sign (#)
Must not duplicate the name of another object owned by the same user.
Must not be an Oracle server reserved word (e.g., SELECT, TABLE, FROM).

CREATE TABLE Statement

You must have:

CREATE TABLE privilege
A storage area (quota in a tablespace)

CREATE TABLE [schema.]table
    (column datatype [DEFAULT expr] [, ...]);

What You Specify - Table name - Column name, column data type, and column size

Referencing Another User's Tables

Tables belonging to other users are not in the user's schema.
You should use the owner's name as a prefix to those tables.

This is called schema-qualified table reference.

SELECT * FROM schema_name.table_name;

DEFAULT Option

Specify a default value for a column during an INSERT.
If no value is provided for the column in the INSERT, the default is used automatically.

column_name datatype DEFAULT expression

Literal values, expressions, or SQL functions are legal values.
Another column's name or a pseudocolumn are illegal values.
The default data type must match the column data type (Oracle performs implicit conversion if possible).

CREATE TABLE hire_dates
    (id          NUMBER(8),
     hire_date   DATE DEFAULT SYSDATE);

Creating Tables

Create the Table

CREATE TABLE dept
    (deptno      NUMBER(2),
     dname       VARCHAR2(14),
     loc         VARCHAR2(13),
     create_date DATE DEFAULT SYSDATE);

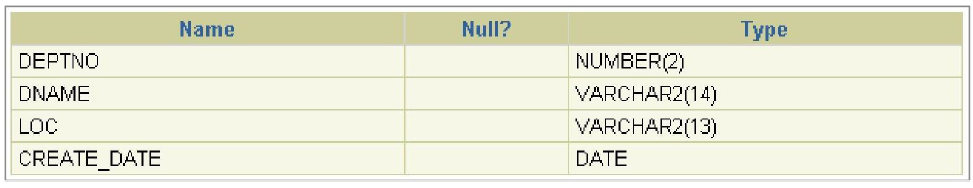

Confirm Table Creation

DESCRIBE dept; -- not SQL Statement

alt text

Data Types

Oracle provides a variety of data types to store different kinds of information efficiently.

Data Type	Description
VARCHAR2(size)	Variable-length character data (up to 4000 bytes; size in bytes or characters)
CHAR(size)	Fixed-length character data (padded with spaces; up to 2000 bytes)
NUMBER(p, s)	Variable-length numeric data (p = precision, s = scale)
DATE	Date and time values (century to seconds)
LONG	Variable-length character data (up to 2 GB) — deprecated
CLOB	Character large object (up to 4 GB)
RAW and LONG RAW	Raw binary data (deprecated)
BLOB	Binary large object (up to 4 GB)
BFILE	Binary data stored in an external file (up to 4 GB)
ROWID	A base-64 number system representing the unique address of a row in its table

Date and Interval Types

Data Type	Description
TIMESTAMP	Date with fractional seconds
INTERVAL YEAR TO MONTH	Stored as an interval of years and months
INTERVAL DAY TO SECOND	Stored as an interval of days, hours, minutes, and seconds

Datetime Data Types

The TIMESTAMP data type is an extension of the DATE data type.
It stores the year, month, and day of the DATE data type plus hour, minute, and second values as well as the fractional second value.
You can optionally specify the time zone.

Data Type	Description
TIMESTAMP [(fractional_seconds_precision)]	Stores date, time, and fractional seconds (precision 0–9, default 6)
TIMESTAMP [(fractional_seconds_precision)] WITH TIME ZONE	Includes time zone offset (e.g., +05:30) or time zone region name
TIMESTAMP [(fractional_seconds_precision)] WITH LOCAL TIME ZONE	Stores in database time zone, automatically converts to user’s local time zone on retrieval

Interval Data Types

Oracle provides interval data types to store periods of time.

INTERVAL YEAR TO MONTH

Stores a period of time using the YEAR and MONTH datetime fields.

INTERVAL YEAR [(year_precision)] TO MONTH

INTERVAL DAY TO SECOND

Stores a period of time in terms of days, hours, minutes, and seconds.

INTERVAL DAY [(day_precision)] TO SECOND [(fractional_seconds_precision)]

Including Constraints

Constraints enforce rules at the table level.
Constraints prevent the deletion of a table if there are dependencies.
They ensure data integrity by restricting what data can be inserted, updated, or deleted.

Valid Constraint Types

Constraint Type	Description	Example Use Case

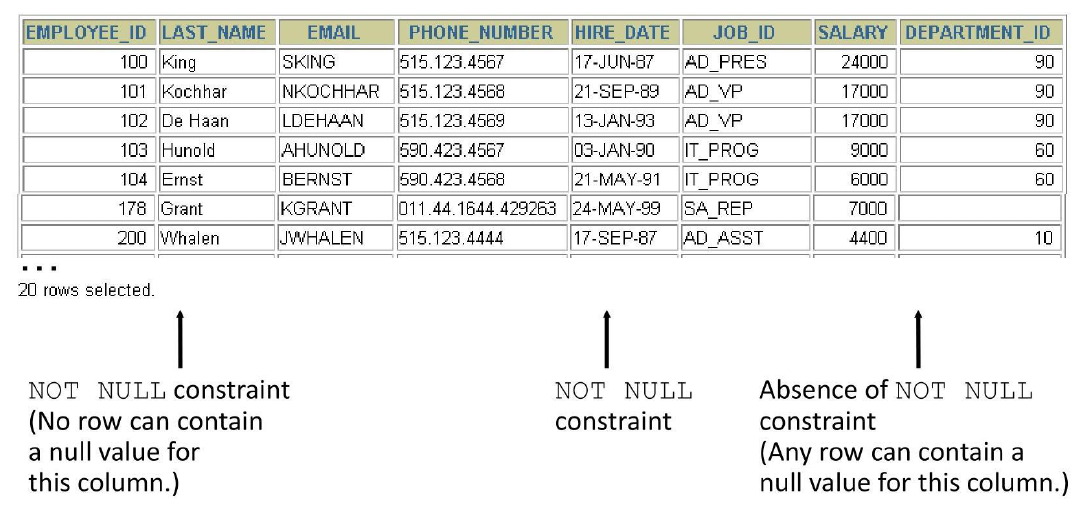

NOT NULL	Column cannot contain NULL values	email, last_name

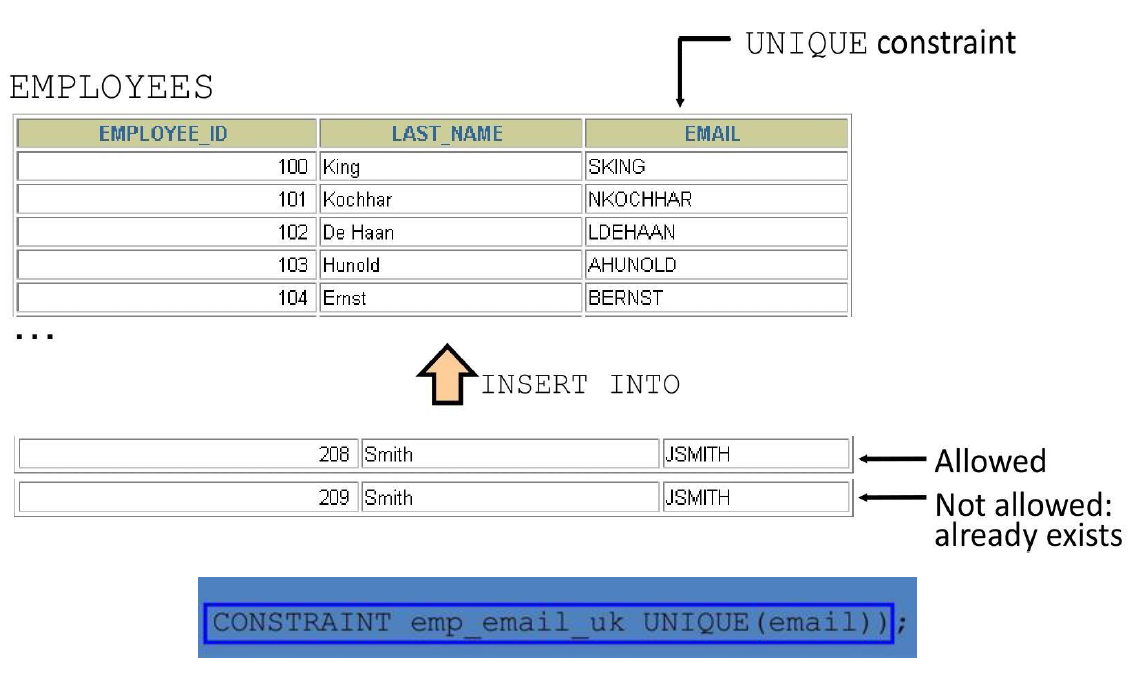

UNIQUE	All values in the column (or combination) must be unique	employee_id (if not PK), email
PRIMARY KEY	Combines NOT NULL + UNIQUE; uniquely identifies each row	employee_id, dept_id
FOREIGN KEY	Enforces referential integrity — value must exist in referenced table/key	department_id references departments(dept_id)
CHECK	Ensures column value satisfies a specific condition	salary > 0, job_id IN ('SA_REP','IT_PROG')

Constraint Guidelines

You can name a constraint, or the Oracle server generates a name by using the SYS_Cn format.
Create a constraint at either of the following times:
- At the same time as the table is created
- After the table has been created
Define a constraint at the column or table level.
View a constraint in the data dictionary.

Defining Constraints

CREATE TABLE [schema.]table
(
    column datatype [DEFAULT expr]
        [column_constraint],
    ...
    [table_constraint] [, ...]
);

Column-Level Constraint

column [CONSTRAINT constraint_name] constraint_type

CREATE TABLE employees (
    employee_id NUMBER(6)
        CONSTRAINT emp_emp_id_pk PRIMARY KEY,
    first_name  VARCHAR2(20),
    ...
);

Table-Level Constraint

[CONSTRAINT constraint_name] constraint_type (column [, ...])

CREATE TABLE employees (
    employee_id NUMBER(6),
    first_name  VARCHAR2(20),
    ...
    job_id      VARCHAR2(10) NOT NULL,
    CONSTRAINT emp_emp_id_pk PRIMARY KEY (employee_id)
);

NOT NULL Constraint

Ensures that null values are not permitted for the column.

alt text

UNIQUE Constraint

alt text

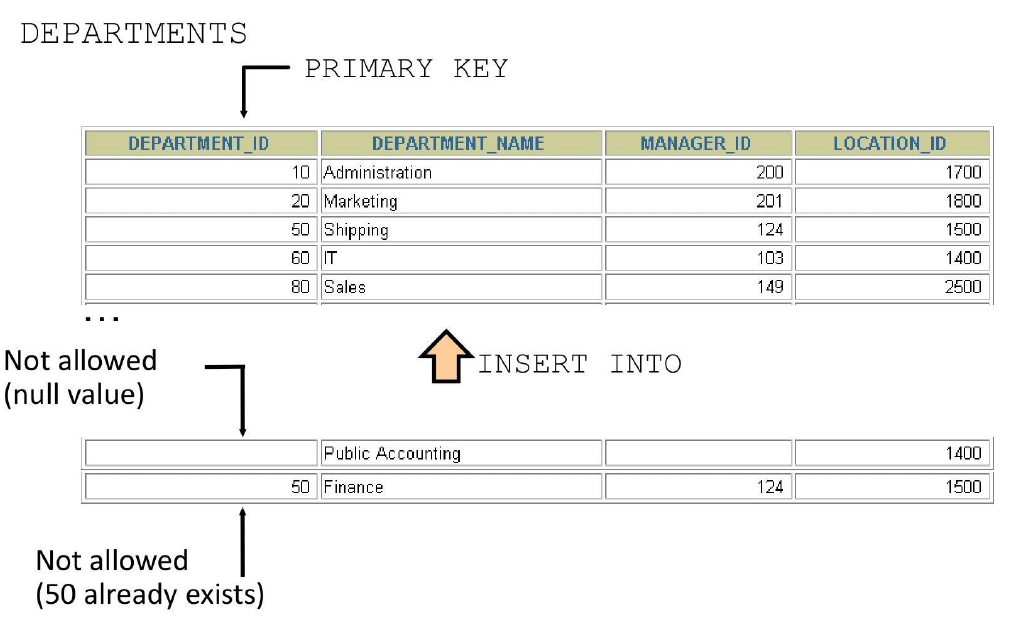

PRIMARY KEY Constraint

alt text

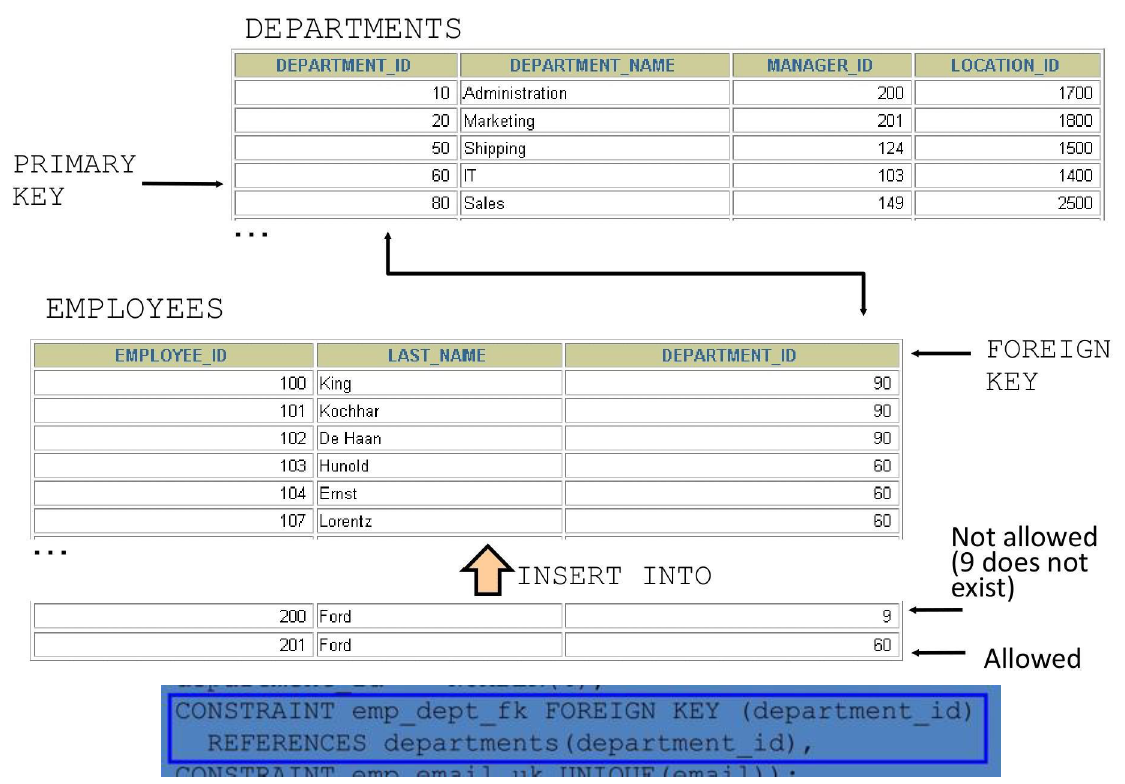

FOREIGN KEY Constraint

alt text

FOREIGN KEY Constraint: Keywords

FOREIGN KEY: Defines the column in the child table at the table-constraint level
REFERENCES: Identifies the table and column in the parent table
ON DELETE CASCADE: Deletes the dependent rows in the child table when a row in the parent table is deleted
ON DELETE SET NULL: Converts dependent foreign key values to null

CHECK Constraint

Defines a condition that each row must satisfy
The following expressions are not allowed:
- References to CURRVAL, NEXTVAL, LEVEL, and ROWNUM pseudocolumns
- Calls to SYSDATE, UID, USER, and USERENV functions
- Queries that refer to other values in other rows

..., salary NUMBER(2)
    CONSTRAINT emp_salary_min
    CHECK (salary > 0), ...

Violating Constraints 1

UPDATE employees
SET    department_id = 55
WHERE  department_id = 110;

UPDATE employees
*
ERROR at line 1:
ORA-02291: integrity constraint (HR.EMP_DEPT_FK)
violated - parent key not found

Department 55 does not exist.

Violating Constraints 2

You cannot delete a row that contains a primary key that is used as a foreign key in

DELETE FROM departments
WHERE  department_id = 60;

DELETE FROM departments
*
ERROR at line 1:
ORA-02292: integrity constraint (HR.EMP_DEPT_FK)
violated - child record found

Creating a Table by Using a Subquery

Create a table and insert rows by combining the CREATE TABLE statement and the AS subquery option.

CREATE TABLE table
    [(column, column...)]
AS subquery;

Match the number of specified columns to the number of subquery columns.
Define columns with column names and default values.

Creating a Table by Using a Subquery

CREATE TABLE dept80
AS
    SELECT  employee_id, last_name,
            salary*12 ANNSAL,
            hire_date
    FROM    employees
    WHERE   department_id = 80;

ALTER TABLE Statement

Use the ALTER TABLE statement to:
- Add a new column
- Modify an existing column
- Define a default value for the new column
- Drop a column

Dropping a Table

All data and structure in the table are deleted.
Any pending transactions are committed.
All indexes are dropped.
All constraints are dropped.
You cannot roll back the DROP TABLE statement.

DROP TABLE dept80;
