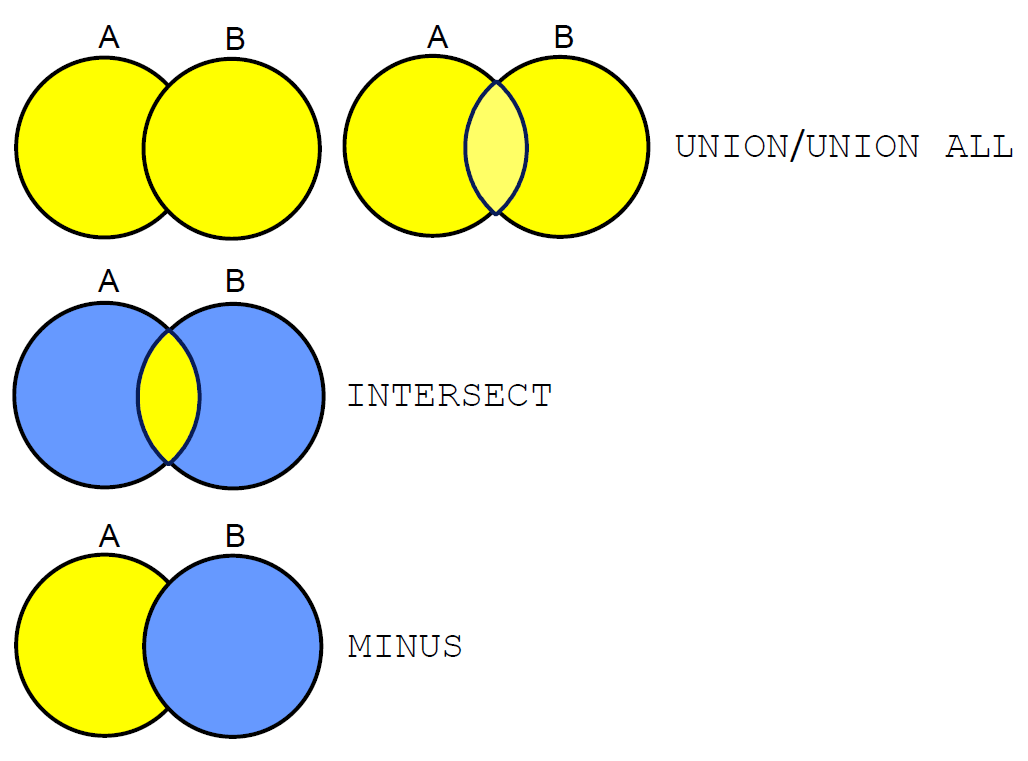

Set Operators

Set operators

alt text

Tables Used

EMPLOYEES: Provides details regarding all current employees
JOB_HISTORY: Records the details of the start date and end date of the former job, and the job identification number and department when an employee switches jobs

When an employee switches jobs, the details of the start date and end date of the former job, the job identification number, and the department are recorded in the JOB_HISTORY table.

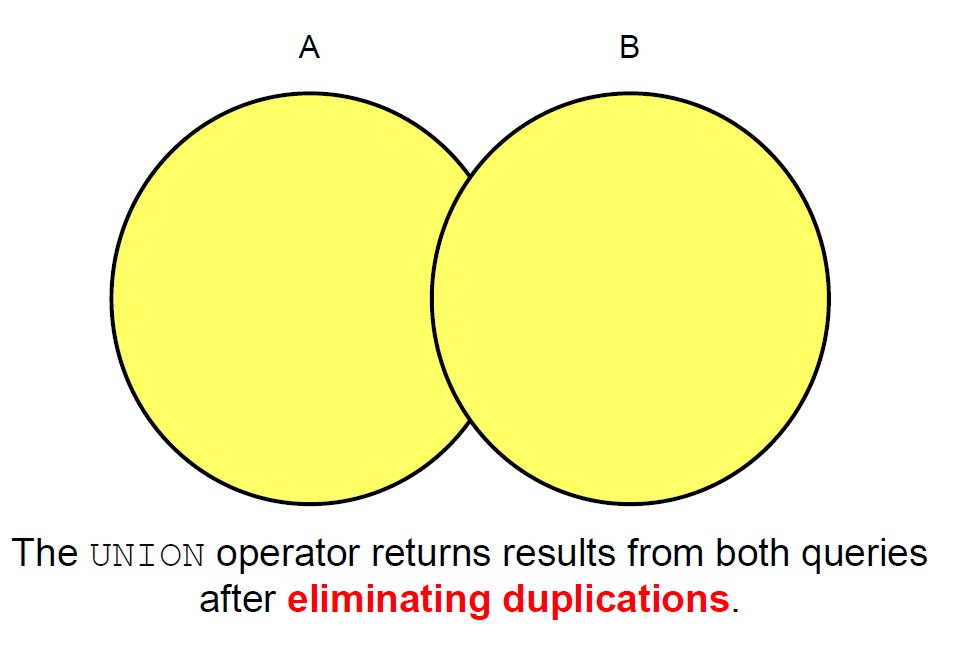

UNION Operator

alt text

Display the current and previous job details of all employees. Display each employee only once.

SELECT employee_id, job_id
FROM nikovits.employees
UNION
SELECT employee_id, job_id
FROM nikovits.job_history;

EMPLOYEE_ID	JOB_ID
100	AD_PRES
101	AC_ACCOUNT
101	AC_MGR
101	AD_VP
102	AD_VP
102	IT_PROG
103	IT_PROG
104	IT_PROG
105	IT_PROG
106	IT_PROG
107	IT_PROG
108	FI_MGR
109	FI_ACCOUNT
110	FI_ACCOUNT
111	FI_ACCOUNT
112	FI_ACCOUNT
113	FI_ACCOUNT
114	PU_MAN

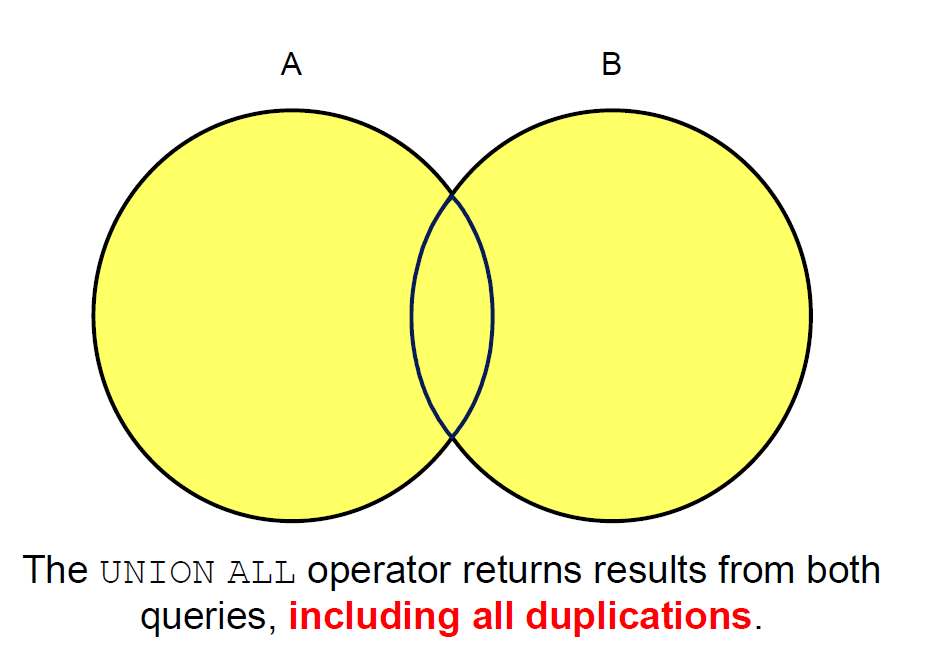

UNION ALL Operator

alt text

Display the current and previous departments of all employees.

SELECT employee_id, job_id, department_id
FROM nikovits.employees
UNION ALL
SELECT employee_id, job_id, department_id
FROM nikovits.job_history
ORDER BY employee_id;

EMPLOYEE_ID	JOB_ID	DEPARTMENT_ID
100	AD_PRES	90
101	AD_VP	90
101	AC_ACCOUNT	110
101	AC_MGR	110
102	IT_PROG	60
102	AD_VP	90
103	IT_PROG	60
104	IT_PROG	60
105	IT_PROG	60
106	IT_PROG	60
107	IT_PROG	60
108	FI_MGR	100

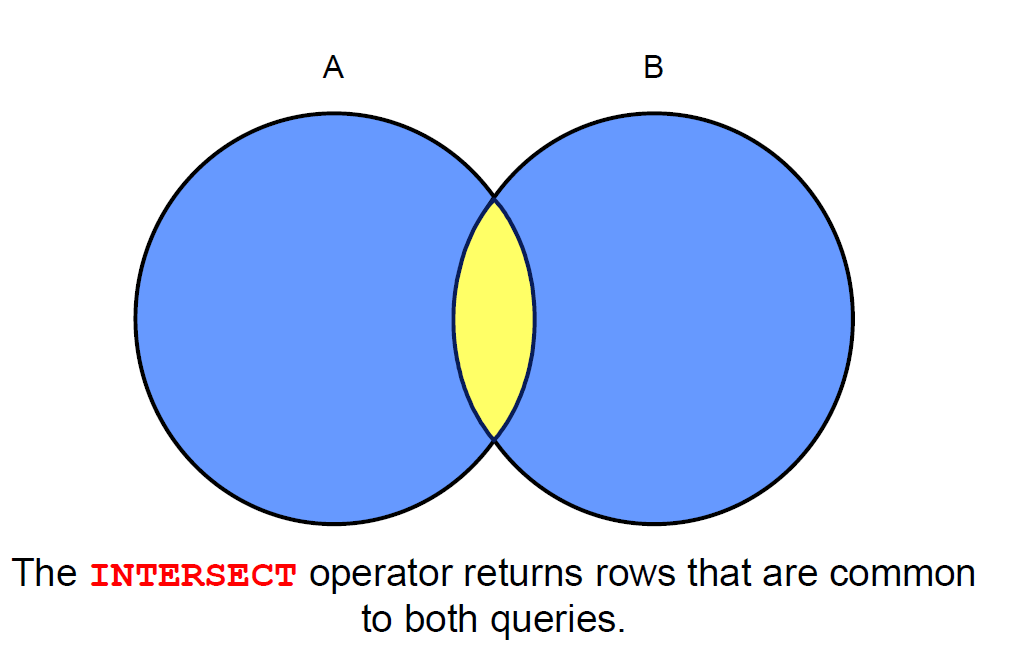

INTERSECT Operator

alt text

Display the employee IDs and job IDs of those employees who currently have a job title that is the same as their job title when they were initially hired (that is, they changed jobs but have now gone back to doing their original job).

SELECT employee_id, job_id
FROM nikovits.employees
INTERSECT
SELECT employee_id, job_id
FROM nikovits.job_history;

EMPLOYEE_ID	JOB_ID
176	SA_REP
200	AD_ASST

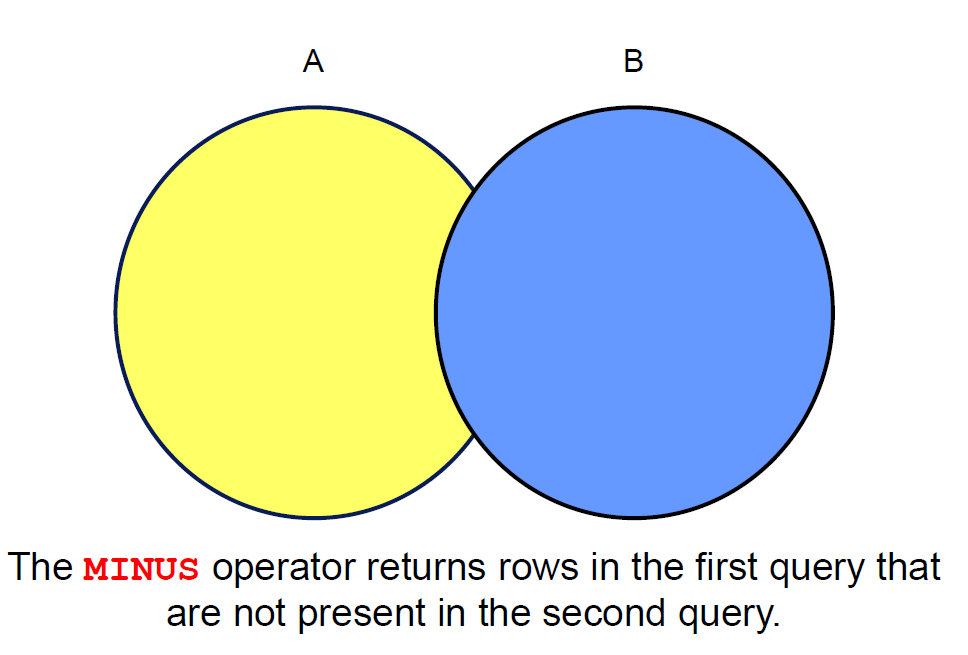

MINUS Operator

alt text

Display the employee IDs of those employees who have not changed their jobs even once.

SELECT employee_id,job_id
FROM nikovits.employees
MINUS
SELECT employee_id,job_id
FROM nikovits.job_history;

EMPLOYEE_ID	JOB_ID
100	AD_PRES
101	AD_VP
102	AD_VP
103	IT_PROG
104	IT_PROG
105	IT_PROG
106	IT_PROG
107	IT_PROG
108	FI_MGR
109	FI_ACCOUNT
110	FI_ACCOUNT
111	FI_ACCOUNT
112	FI_ACCOUNT

Set Operator Guidelines

The expressions in the SELECT lists must match in number and data type. - Parentheses can be used to alter the sequence of execution. - The ORDER BY clause: - Can appear only at the very end of the statement - Will accept the column name, aliases from the first SELECT statement, or the positional notation.

Key Behaviors of Set Operators in Oracle Server

Set operators (such as UNION, UNION ALL, INTERSECT, MINUS) combine the results of two or more queries.

Important Rules

Duplicate rows are automatically eliminated, except in UNION ALL.

UNION, INTERSECT, and MINUS perform distinct processing (remove duplicates).
UNION ALL retains all duplicates.

Column names from the first query appear in the result.

The final result set uses the column names (and aliases) from the first SELECT statement.
Subsequent queries must have compatible columns, but their names/aliases are ignored in the output.

The output is sorted in ascending order by default, except in UNION ALL.

UNION, INTERSECT, and MINUS implicitly sort the entire result set in ascending order by all columns (to eliminate duplicates).
UNION ALL does not sort the results—it returns rows in the order they are retrieved.

Common Set Operators

Operator	Description	Removes Duplicates?	Sorts Result?
UNION ALL	Returns all rows from both queries	No	No
UNION	Returns unique rows from both queries	Yes	Yes
INTERSECT	Returns rows common to both queries	Yes	Yes
MINUS	Returns rows from first query not in second	Yes	Yes

Matching the SELECT Statements

Using the UNION operator, display the department ID, location, and hire date for all employees.

SELECT department_id, TO_NUMBER(null)
location, hire_date
FROM nikovits.employees
UNION
SELECT department_id, location_id, TO_DATE(null)
FROM nikovits.departments;

DEPARTMENT_ID	LOCATION	HIRE_DATE
10	1700	NULL
10	NULL	17/09/87
20	1800	NULL
20	NULL	17/02/96
20	NULL	17/08/97
30	1700	NULL
30	NULL	07/12/94
30	NULL	18/05/95
30	NULL	24/07/97
30	NULL	24/12/97
30	NULL	15/11/98
30	NULL	10/08/99
40	2400	NULL

Using the UNION operator, display the employee ID, job ID, and salary of all employees.

SELECT employee_id, job_id,salary
FROM nikovits.employees
UNION
SELECT employee_id, job_id,0
FROM nikovits.job_history;

EMPLOYEE_ID	JOB_ID	SALARY
100	AD_PRES	24000
101	AC_ACCOUNT	0
101	AC_MGR	0
101	AD_VP	17000
102	AD_VP	17000
102	IT_PROG	0
103	IT_PROG	9000
104	IT_PROG	6000
105	IT_PROG	4800
106	IT_PROG	4800
107	IT_PROG	4200
108	FI_MGR	12000
109	FI_ACCOUNT	9000

Controlling the Order of Rows

Produce an English sentence using two UNION operators.

(Run as a script, not as a single statement.)

COLUMN a_dummy NOPRINT
SELECT 'sing' AS "My dream", 3 a_dummy
FROM dual
UNION
SELECT 'I''d like to teach', 1 a_dummy
FROM dual
UNION
SELECT 'the world to', 2 a_dummy
FROM dual
ORDER BY a_dummy;

My dream	A_DUMMY
Id like to teach	1
the world to	2
sing	3
