Joins

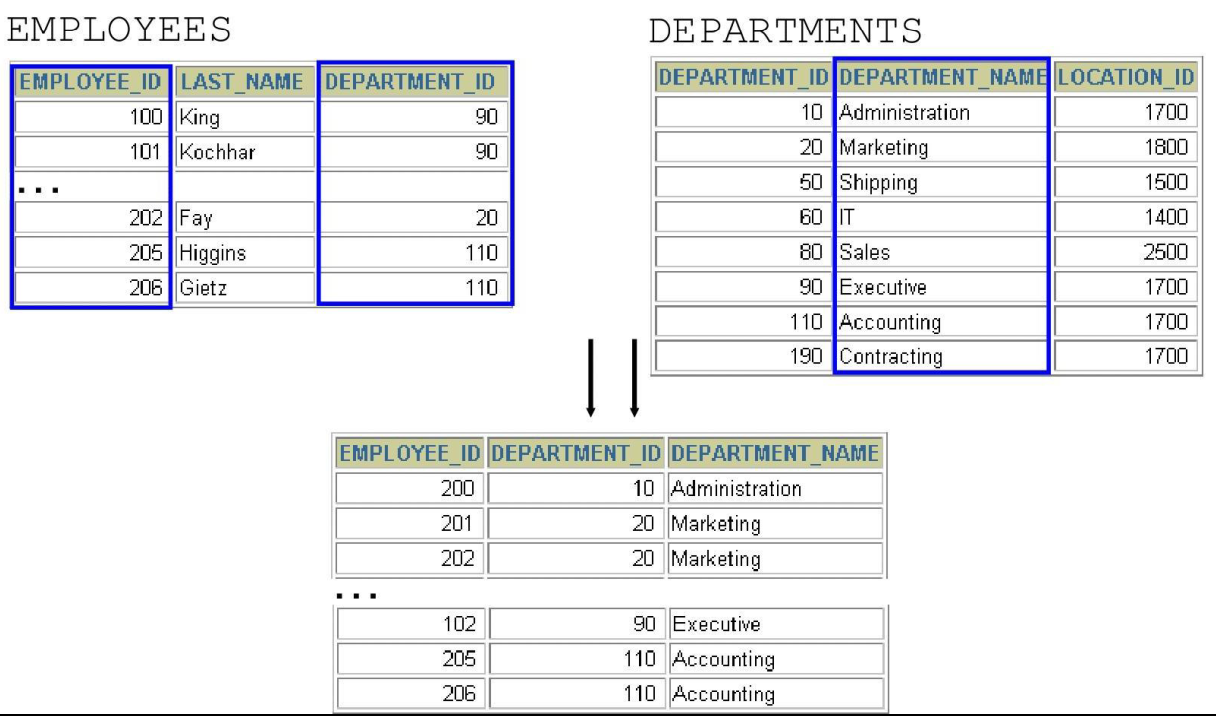

Obtaining Data from Multiple Tables

alt text

Types of Joins

Joins that are compliant with the SQL:1999 standard include the following: – Cross joins – Natural joins – USING clause – Full (or two-sided) outer joins – Arbitrary join conditions for outer joins

Joining Tables Using SQL:1999 Syntax

Use a join to query data from more than one table:

SELECT table1.column, table2.column
FROM   table1
[NATURAL JOIN table2] |
[JOIN table2 USING (column_name)] |
[JOIN table2
 ON (table1.column_name = table2.column_name)] |
[LEFT|RIGHT|FULL OUTER JOIN table2
 ON (table1.column_name = table2.column_name)] |
[CROSS JOIN table2];

Creating Natural Joins

The NATURAL JOIN clause is based on all columns in the two tables that have the same name.
It selects rows from the two tables that have equal values in all matched columns.
If the columns having the same names have different data types, an error is returned.

Retrieving Records with Natural Joins

SELECT department_id, department_name,
location_id, city
FROM nikovits.departments
NATURAL JOIN nikovits.locations ;

DEPARTMENT_ID	DEPARTMENT_NAME	LOCATION_ID	CITY
10	Administration	1700	Seattle
20	Marketing	1800	Toronto
30	Purchasing	1700	Seattle
40	Human Resources	2400	London
50	Shipping	1500	South San Francisco
60	IT	1400	Southlake
70	Public Relations	2700	Munich
80	Sales	2500	Oxford
90	Executive	1700	Seattle
100	Finance	1700	Seattle
110	Accounting	1700	Seattle
120	Treasury	1700	Seattle

Creating Joins with the USING Clause

If several columns have the same names but the data types do not match, the NATURAL JOIN clause can be modified with the USING clause to specify the columns that should be used for an equijoin.
Use the USING clause to match only one column when more than one column matches.
Do not use a table name or alias in the referenced columns.
The NATURAL JOIN and USING clauses are mutually exclusive.

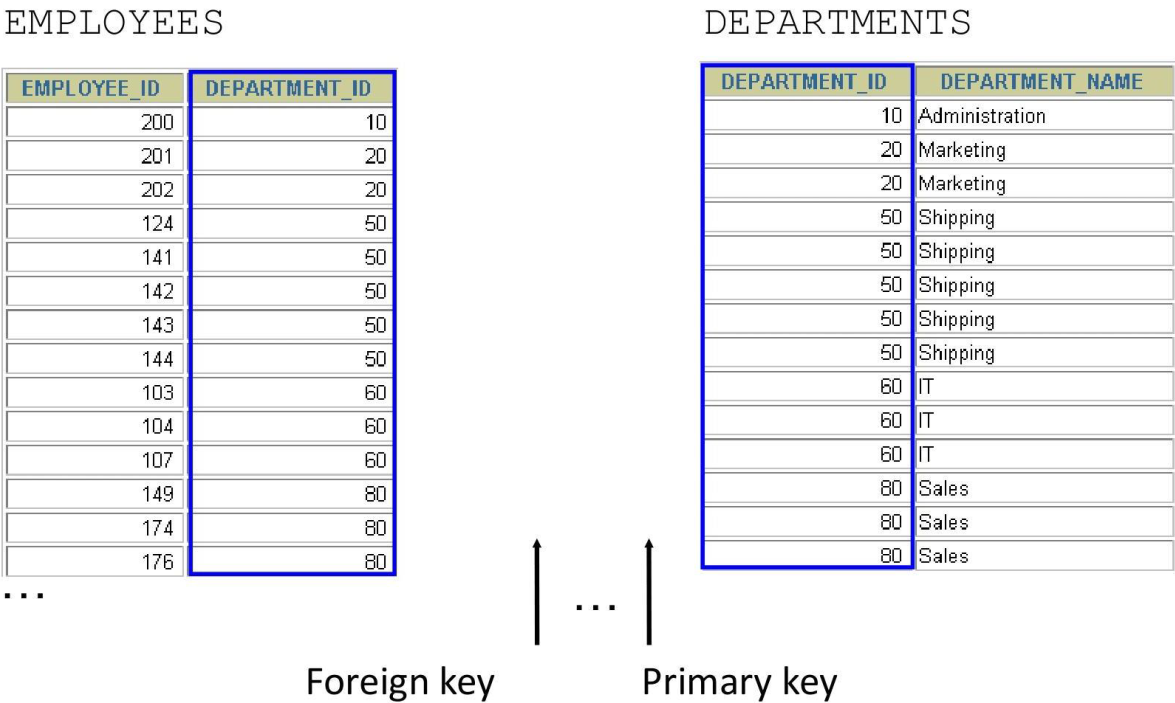

Joining Column Names

alt text

SELECT nikovits.employees.employee_id, nikovits.employees.last_name,
nikovits.departments.location_id, department_id
FROM nikovits.employees JOIN nikovits.departments
USING (department_id) ;

EMPLOYEE_ID	LAST_NAME	LOCATION_ID	DEPARTMENT_ID
100	King	1700	90
101	Kochhar	1700	90
102	De Haan	1700	90
103	Hunold	1400	60
104	Ernst	1400	60
105	Austin	1400	60
106	Pataballa	1400	60
107	Lorentz	1400	60
108	Greenberg	1700	100
109	Faviet	1700	100
110	Chen	1700	100

Qualifying Ambiguous

Column Names

Use table prefixes to qualify column names that are in multiple tables.
Use table prefixes to improve performance.
Use column aliases to distinguish columns that have identical names but reside in different tables.
Do not use aliases on columns that are identified in the USING clause and listed elsewhere in the SQL statement.

Using Table Aliases

Use table aliases to simplify queries.
Use table aliases to improve performance.

SELECT e.employee_id, e.last_name,
       d.location_id, department_id
FROM   employees e JOIN departments d
USING  (department_id) ;

Creating Joins with the ON Clause

The join condition for the natural join is basically an equijoin of all columns with the same name.
Use the ON clause to specify arbitrary conditions or specify columns to join.
The join condition is separated from other search conditions.
The ON clause makes code easy to understand.

SELECT e.employee_id, e.last_name, e.department_id,
d.department_id, d.location_id
FROM nikovits.employees e JOIN nikovits.departments d
ON (e.department_id = d.department_id);

EMPLOYEE_ID	LAST_NAME	DEPARTMENT_ID	DEPARTMENT_ID	LOCATION_ID
100	King	90	90	1700
101	Kochhar	90	90	1700
102	De Haan	90	90	1700
103	Hunold	60	60	1400
104	Ernst	60	60	1400
105	Austin	60	60	1400
106	Pataballa	60	60	1400
107	Lorentz	60	60	1400
108	Greenberg	100	100	1700
109	Faviet	100	100	1700
110	Chen	100	100	1700
111	Sciarra	100	100	1700
112	Urman	100	100	1700
113	Popp	100	100	1700
114	Raphaely	30	30	1700

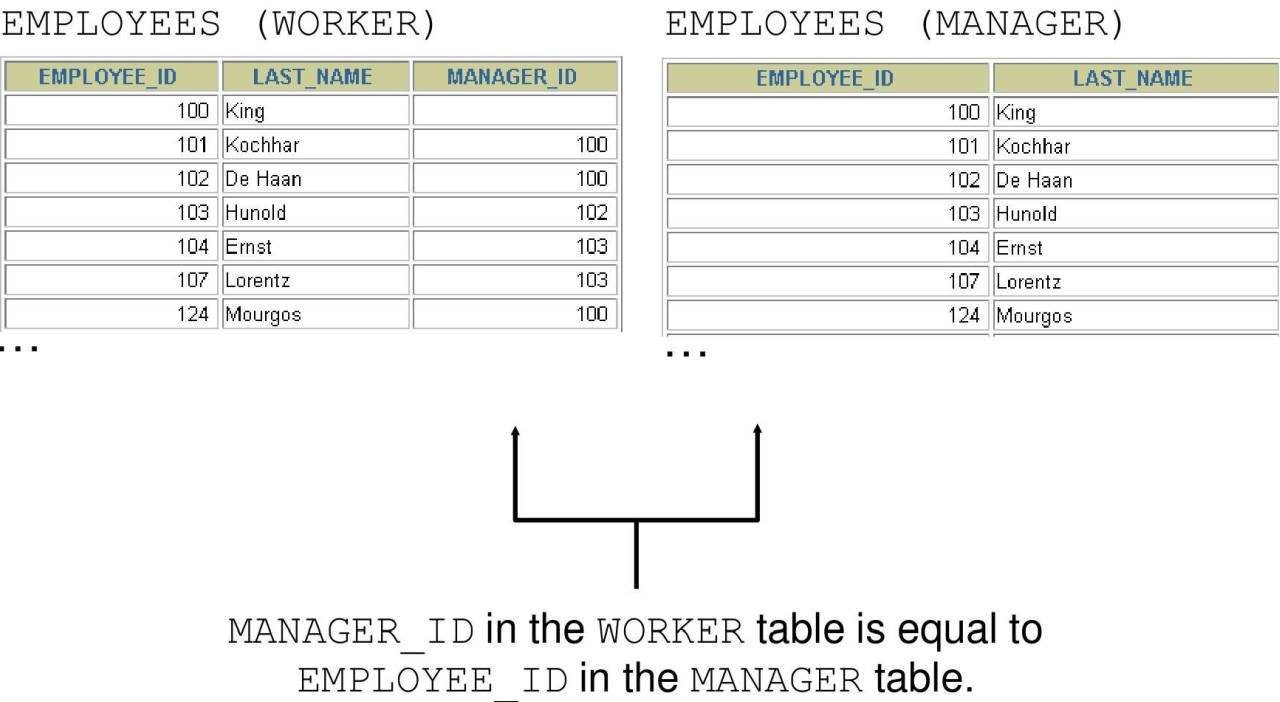

Self-Joins Using the ON Clause

alt text

SELECT e.last_name emp, m.last_name mgr
FROM nikovits.employees e JOIN nikovits.employees m
ON (e.manager_id = m.employee_id);

EMP	MGR
Kochhar	King
De Haan	King
Raphaely	King
Weiss	King
Fripp	King
Kaufling	King
Vollman	King
Mourgos	King
Russell	King
Partners	King
Errazuriz	King
Cambrault	King
Zlotkey	King

Applying Additional Conditions to a Join

SELECT e.employee_id, e.last_name, e.department_id,
       d.department_id, d.location_id
FROM   employees e JOIN departments d
ON     (e.department_id = d.department_id)
AND    e.manager_id = 149;

EMPLOYEE_ID	LAST_NAME	DEPARTMENT_ID	DEPARTMENT_ID	LOCATION_ID
174	Abel	80	80	2500
178	Taylor	80	80	2500

Alternatively, you can use a WHERE clause to apply additional conditions:

SELECT e.employee_id, e.last_name, e.department_id,
       d.department_id, d.location_id
FROM   employees e JOIN departments d
ON     (e.department_id = d.department_id)
WHERE  e.manager_id = 149;

Creating Three-Way Joins with the ON Clause

SELECT employee_id, city, department_name
FROM nikovits.employees e
JOIN nikovits.departments d
ON d.department_id = e.department_id
JOIN nikovits.locations l
ON d.location_id = l.location_id;

EMPLOYEE_ID	CITY	DEPARTMENT_NAME
100	Seattle	Executive
101	Seattle	Executive
102	Seattle	Executive
103	Southlake	IT
104	Southlake	IT
105	Southlake	IT
106	Southlake	IT
107	Southlake	IT
108	Seattle	Finance
109	Seattle	Finance
110	Seattle	Finance
111	Seattle	Finance
112	Seattle	Finance
113	Seattle	Finance

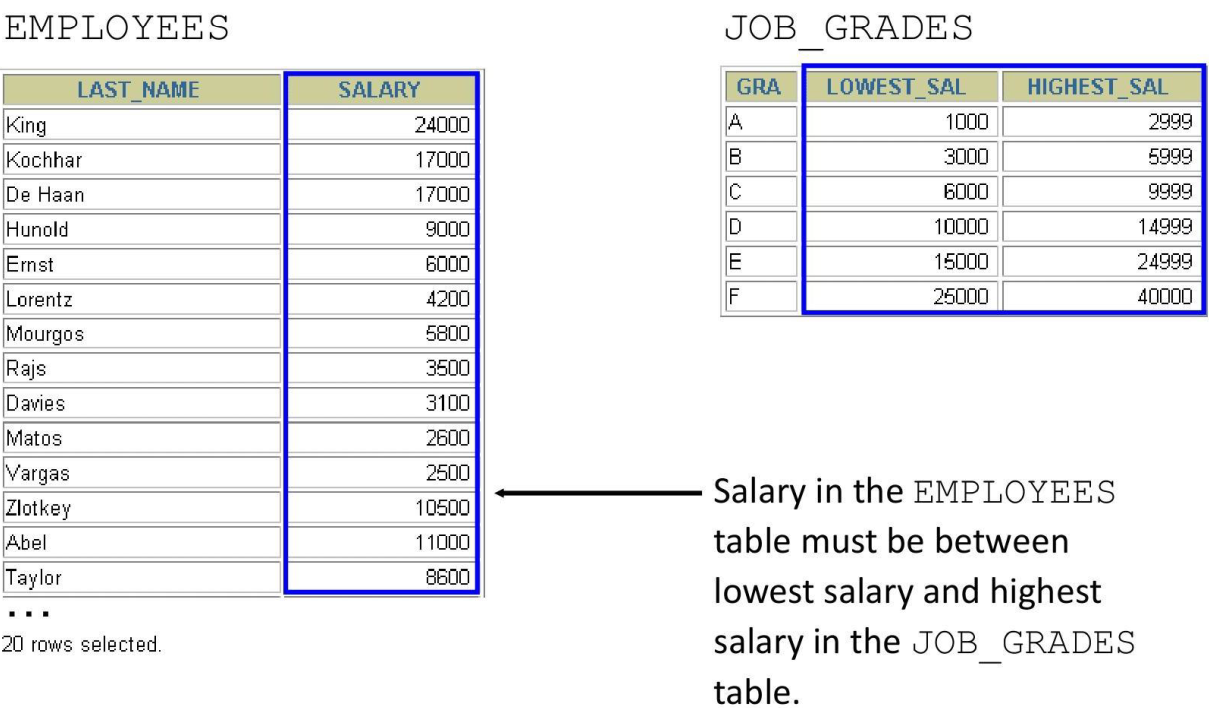

Non-Equijoin

alt text

SELECT e.last_name, e.salary, j.grade_level
FROM nikovits.employees e JOIN nikovits.job_grades j
ON e.salary
BETWEEN j.lowest_sal AND j.highest_sal;

LAST_NAME	SALARY	GRADE_LEVEL
Olson	2100	A
Markle	2200	A
Philtanker	2200	A
Landry	2400	A
Gee	2400	A
Colmenares	2500	A
Marlow	2500	A
Patel	2500	A
Vargas	2500	A
Sullivan	2500	A
Perkins	2500	A
Himuro	2600	A

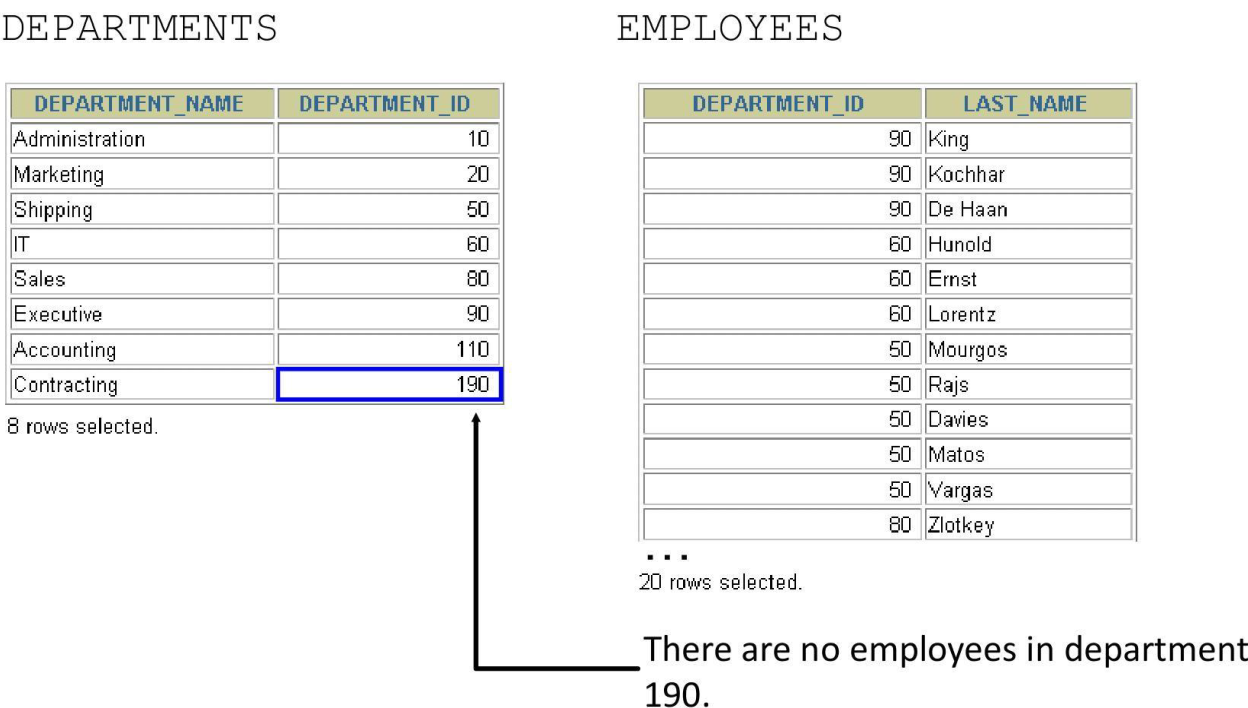

Outer Joins

alt text

INNER Versus OUTER Joins

In SQL:1999, the join of two tables returning only matched rows is called an inner join.
A join between two tables that returns the results of the inner join as well as the unmatched rows from the left (or right) tables is called a left (or right) outer join.
A join between two tables that returns the results of an inner join as well as the results of a left and right join is a full outer join.

LEFT OUTER JOIN

SELECT e.last_name, e.department_id, d.department_name
FROM nikovits.employees e LEFT OUTER JOIN nikovits.departments d
ON (e.department_id = d.department_id) ;

LAST_NAME	DEPARTMENT_ID	DEPARTMENT_NAME
Whalen	10	Administration
Hartstein	20	Marketing
Fay	20	Marketing
Raphaely	30	Purchasing
Khoo	30	Purchasing
Baida	30	Purchasing
Tobias	30	Purchasing
Himuro	30	Purchasing
Colmenares	30	Purchasing
Mavris	40	Human Resources
Weiss	50	Shipping
Fripp	50	Shipping
Kaufling	50	Shipping

RIGHT OUTER JOIN

SELECT e.last_name, e.department_id, d.department_name
FROM nikovits.employees e RIGHT OUTER JOIN nikovits.departments d
ON (e.department_id = d.department_id) ;

LAST_NAME	DEPARTMENT_ID	DEPARTMENT_NAME
King	90	Executive
Kochhar	90	Executive
De Haan	90	Executive
Hunold	60	IT
Ernst	60	IT
Austin	60	IT
Pataballa	60	IT
Lorentz	60	IT
Greenberg	100	Finance
Faviet	100	Finance

FULL OUTER JOIN

SELECT e.last_name, d.department_id, d.department_name
FROM nikovits.employees e FULL OUTER JOIN nikovits.departments d
ON (e.department_id = d.department_id) ;

LAST_NAME	DEPARTMENT_ID	DEPARTMENT_NAME
King	90	Executive
Kochhar	90	Executive
De Haan	90	Executive
Hunold	60	IT
Ernst	60	IT
Austin	60	IT
Pataballa	60	IT
Lorentz	60	IT
Greenberg	100	Finance
Faviet	100	Finance
Chen	100	Finance
Sciarra	100	Finance

Cartesian Products

A Cartesian product is formed when:
A join condition is omitted
A join condition is invalid
All rows in the first table are joined to all rows in the second table
To avoid a Cartesian product, always include a valid join condition.

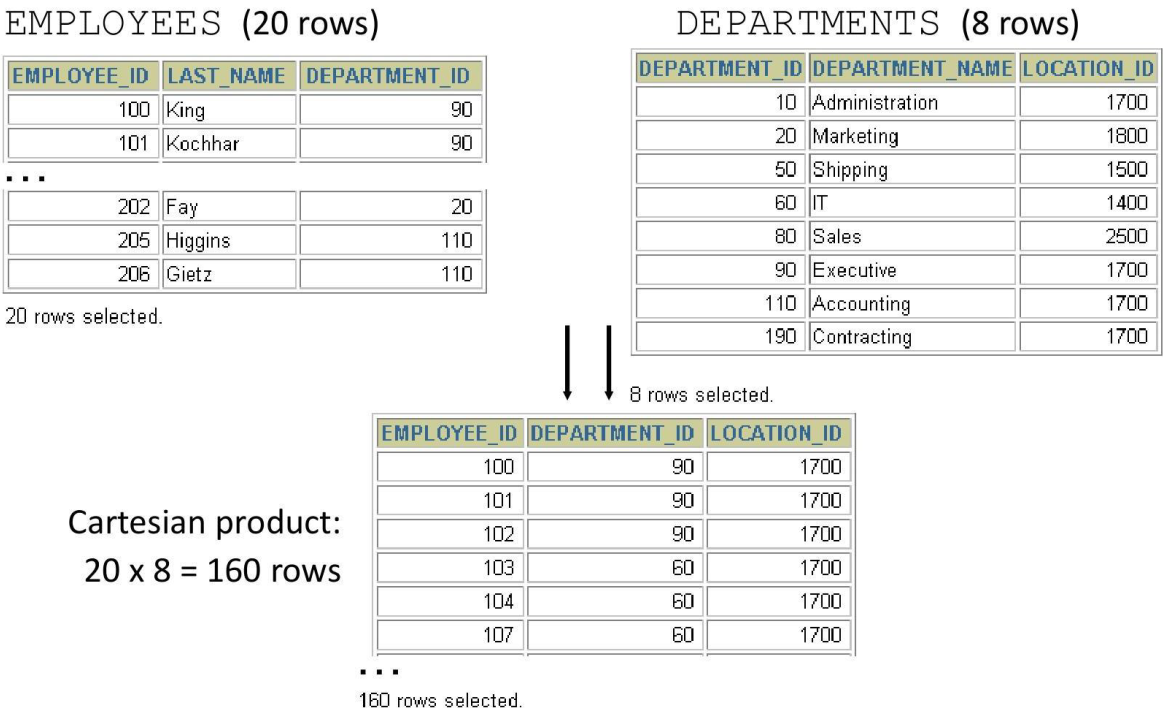

Generating a Cartesian Product

alt text

Creating Cross Joins

The CROSS JOIN clause produces the crossproduct of two tables.
This is also called a Cartesian product between the two tables.

SELECT last_name, department_name
FROM nikovits.employees
CROSS JOIN nikovits.departments ;

LAST_NAME	DEPARTMENT_NAME
King	Administration
Kochhar	Administration
De Haan	Administration
Hunold	Administration
Ernst	Administration
Austin	Administration
Pataballa	Administration
Lorentz	Administration
Greenberg	Administration
Faviet	Administration
Chen	Administration
Sciarra	Administration

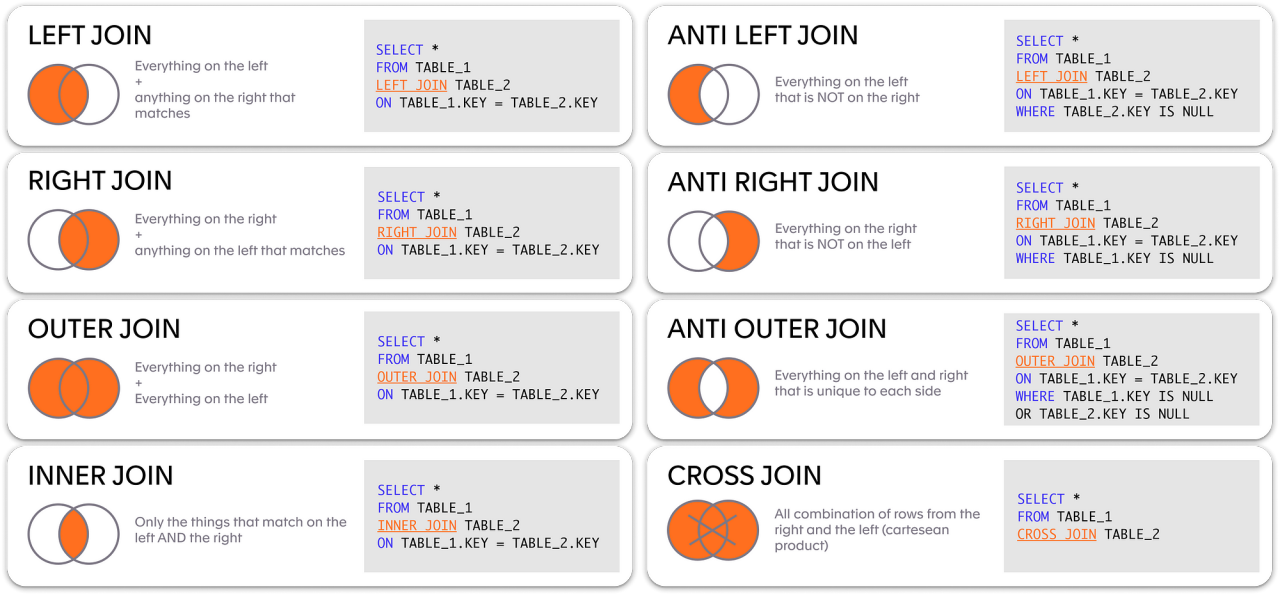

Joins Summary

alt text
